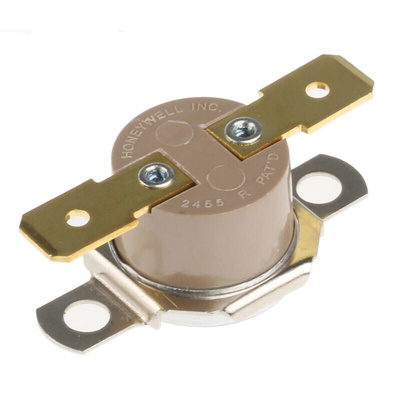

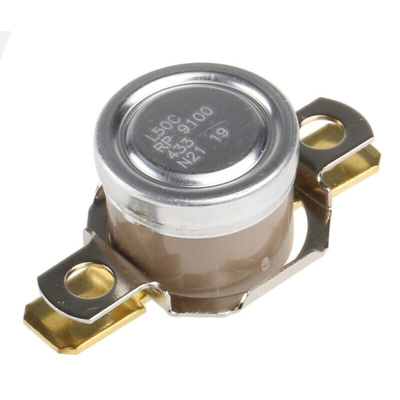

2455RP 9100-433 L50C, Honeywell Bi-Metallic Thermostat, Opens at +50°C, Closes at +35°C, +186°C Max, NC, Automatic Reset, Термостат

Honeywell Thermostatic Switch, Open-On-Rise, +50°C Opening Temperature - 2455RP Series - 2455RP 9100-433 L50C

Use this thermostatic switch from Honeywell to regulate environments with temperature-sensitive equipment. The open-on-rise switch opens and breaks the circuit when the temperature reaches +50°C and closes when the temperature drops to +35°C. This automated process eliminates the need for manual intervention, improving workplace productivity and ensuring safe operating temperatures. The switch has a Ryton® PPS (polyphenylene sulfide) body that's resistant to impact and wear. This material is also flame-retardant, so it helps to prevent the spread of flames in the event of a fire for enhanced safety.

Features & Benefits

• Wide operating temperature range of +0°C to +186°C for use in hot and cold environments
• Durable stainless steel end cap is resistant to impact, heat and corrosion for long-lasting performance
• Dielectric strength of 2000V AC to withstand heavy-duty applications

Applications

• High-current HVAC (heating, ventilation and air conditioning) systems
• Industrial machinery
• Smoke and heat detection

How do I mount this thermostatic switch?

This thermostatic switch comes with a floating steel mounting bracket, making it easy to screw securely in place.

Thermal Switches

Thermostats Line Guide

Dimensional Drawing

Datasheet 2455R
