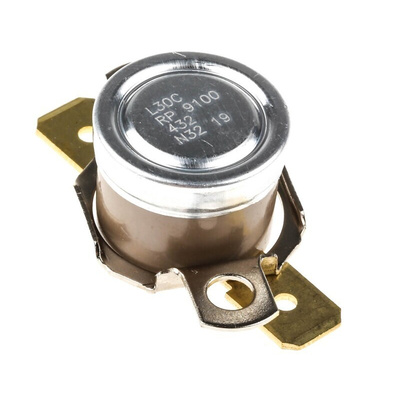

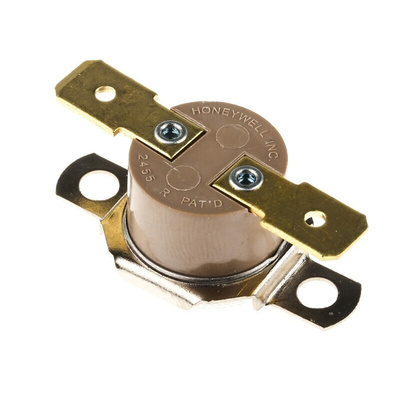

2455RP 9100-432 L30C, Honeywell Bi-Metallic Thermostat, Opens at +30°C, Closes at +20°C, +186°C Max, NC, Automatic Reset, Термостат

Basic Bi-MetallicThermostat

PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Note

The contacts are NOT silver plated and are unsuitable for use with low current dc applications

Honeywell Bimetallic Thermostat, 120 to 250V AC, +30°C Opening Temperature - 2455RP Series - 2455RP 9100-432 L30C

Looking for a reliable way to regulate the climate of your system? Choose this open-on-rise thermostat from Honeywell. When the temperature reaches +30°C, its contacts will open to prevent further heating. If the switch detects the temperature has dropped to +20°C, the contacts will close to automatically activate the thermostat. Its current rating of 10A makes it suitable for use in heavy-duty applications. For added durability, this thermostat features a steel end cap that resists impact and corrosion.

Features & Benefits

• Floating steel bracket for secure mounting
• Durable PPS (polyphenylene sulfide) material for resistance to heat and corrosion
• Dielectric strength of 2000V AC for effective insulation

Applications

• Office buildings
• Manufacturing industry
• Industrial fans
• Storage units

Can this thermostat switch withstand extreme temperatures?

Yes, this thermostat switch has a broad operating temperature range between 0°C and +186°C, making it a good choice for use in demanding environments.

How do I set up this thermostat switch?

You can set up this switch by soldering its electrical terminals to the mounting face of the bimetallic thermostat.
