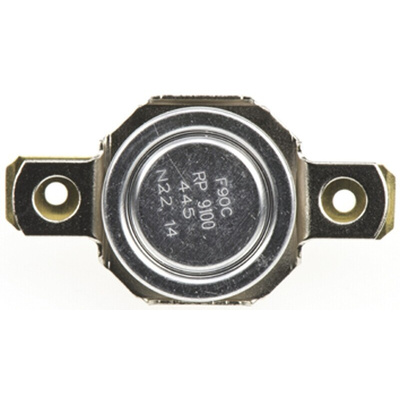

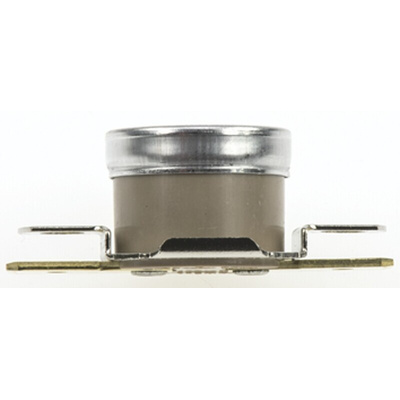

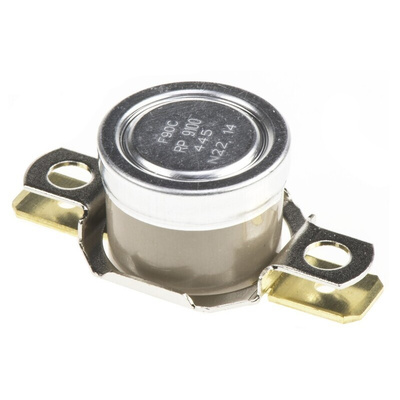

2455RP 9100-445 F90C, Honeywell Bi-Metallic Thermostat, Opens at +75°C, Closes at +90°C, +186°C Max, NO, Automatic Reset, Термостат

Basic Bi-MetallicThermostat

PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac

Note

The contacts are NOT silver plated and are unsuitable for use with low current dc applications

Honeywell Thermostat, 10A Current Rating, +75°C Opening Temperature - 2455RP Series - 2455RP 9100-445 F90C

Use this bimetallic thermostat from Honeywell to automatically regulate temperatures in your work environment. It consists of two metal strips that expand at different rates as the temperature increases, breaking the circuit when one of the strips bends. This helps to prevent overheating in sensitive areas. The unit's housing is made from phenolic material, which is resistant to impact, heat and corrosion for use in harsh environments.

Features & Benefits

• Current rating of 10A for use in heavy-duty applications
• Wide operating temperature range between 0°C and +186°C for use in harsh conditions

Applications

• Oil and gas refineries
• Water heaters
• Central heating systems

At what temperatures does this thermostat open and close?

This thermostat opens at +75°C and closes at +90°C to keep temperatures in a precise range.
