215224 T3-4-8902/I2, Eaton, 4P 3 Position Changeover Cam Switch, 6000V ac, 32A, Кулачковый переключатель

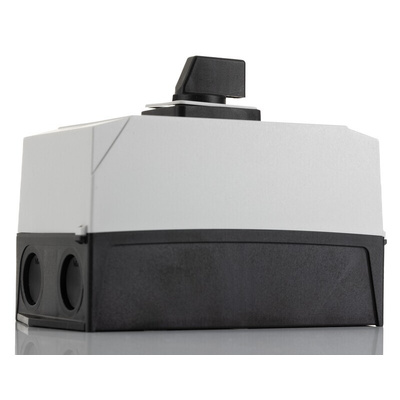

Eaton Rotary Switch, 690V AC Rated Voltage, IP65 Rating - 215224 T3-4-8902/I2

With this rotary switch from Eaton, changing the source of your power supply is done with just a flick of the wrist. As a maintained, three-position switch, you can use it to move over to an emergency supply such as a generator during outages. Alternatively, it's handy when you need to change between different power levels or modes, manually activate a star-delta motor starter or disconnect a motor on a branch circuit. With a thumb grip and a 60° angle of rotation, getting a handle on the unit is easy.

Features & Benefits

• Fully insulated to keep you safe from shocks
• Mechanical lifespan of 500,000 operations indicates it's durable
• Climatic proofing to work dependably in humid environments
• IP65 rating means it's dust-tight and resistant to water jets from any angle

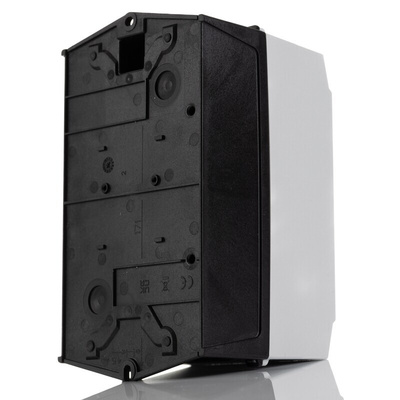

• Integrated mounting frame with screw holes for simple and speedy installation on a floor, wall or panel

What motor types can I control with this rotary switch?

This rotary switch handles single-phase and three-phase motors with horsepower ratings between 1.5 and 10HP, making it handy for industrial machines such as conveyors, pumps and blowers.

Note

Eaton formerly known as Moeller
