RS PRO Surface Gauge, 82 x 63 x 27.5mm Base

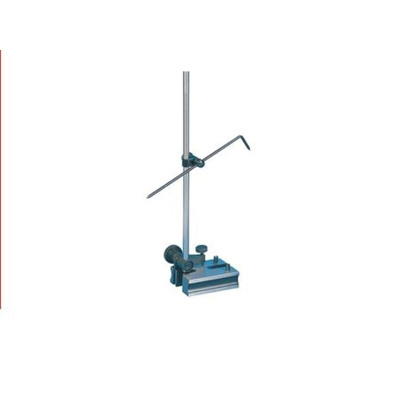

RS PRO Surface Gauge

Use this RS PRO surface gauge to mark lines on your machined surfaces. If you need to find the centre of a circular segment, you can use these marked lines to draw a square and then draw diagonals from its corners to locate the centre.
The gauge has a spindle that can be finely adjusted at any angle below or above the base, giving you a good level of flexibility for different kinds of work. There are also retractable pins in the base to provide stability when you're working on the edge of a surface, for safer, more efficient operation.
A double-ended scriber with hardened points will reliably draw lines on the most demanding surfaces. This surface gauge is ideal for use in machining and metalworking applications and it's also particularly suitable for maintenance and inspection.

Features and Benefits

• 300 mm length and width 10 mm


• Hardened and ground base


• Ground vee groove in base for mounting on cylindrical work


• Retractable pins provided in the base for work against edge of flat surface


• Double ended scriber with hardened points for marking out


• Fine adjustment of spindle may be made at any angle above or below the base

Applications

This product is ideal for several applications

• Machining


• Metalworking


• Maintenance


• Inspection

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
