RS PRO Axial Fan, 90 → 265 V ac, AC Operation, 19.1 ± 10%cfm, 2.2 ± 30%W, 0.33 ± 0.08A Max, 60 x 60 x 25mm

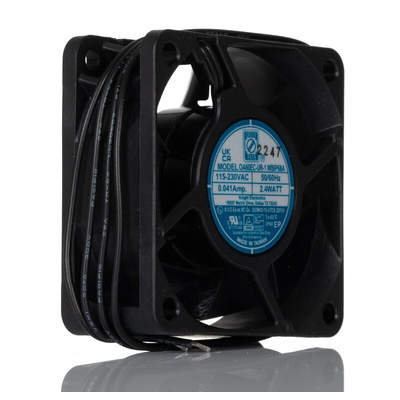

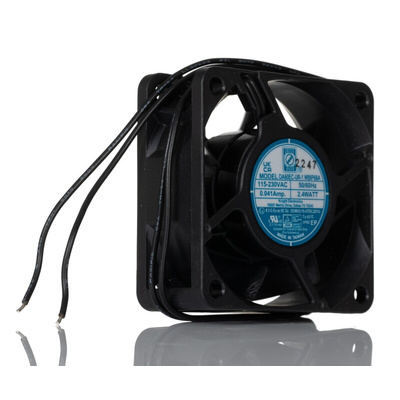

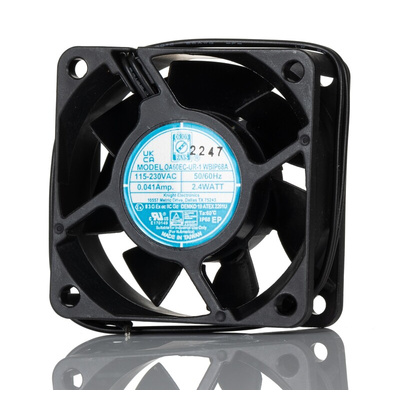

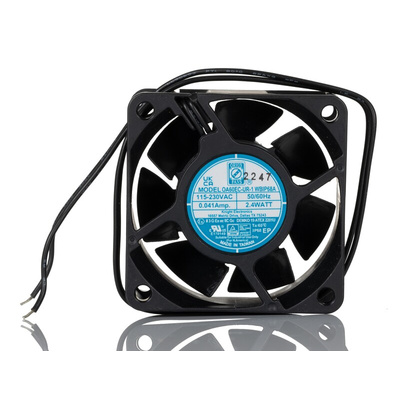

RS PRO Brushless EC, AC Axial Fan – OA60EC Series

The RS PRO range of axial fans keeps on improving. We are proud to introduce the latest addition to the OA60 series that incorporates an EC brushless motor with auto cut-off, restart, and electronic protection. These high-quality fans have lead wire connection, once installed offers the perfect cooling solution with reliability and quality.

Features and Benefits

• PBT UL94V-0 plastic frame and impeller


• Dual ball double sealed bearing system


• EC Brushless motor


• Lead wire connection


• Smooth and efficient air flow


• Low-noise


• IP68


• Life expectancy typically 50,000 hours based on L10 curve figures

Specification

• Rated Voltage 90 - 265 VAC


• Rated Power 2.2 ± 30% (Watts)


• Rated Current 0.33 ± 0.08


• Rated Speed 3900 ± 10%(RPM)


• Airflow 19.1 ± 10%(CFM)


• Noise Level: 31(dB)


• Max. Static Pressure 0.17 in H2O ± 10%

What are axial fans used for?

Axial fans are used across all industries where the cooling of components or machinery is important. Fans work by drawing air across a surface to cool it or to push hot airway to cool it. This is essential in everyday items such as a desktop PC, where the axial fan would cool down the processor to ensure the computer would continue to operate smoothly.

Common uses of axial fans

• Server racks- Axial fans are used to keep hubs, routers and patch panels cool.


• Electrical cabinets and enclosures – Installed into cabinets and enclosures to cool and protect components preventing premature failure.


• Production lines or areas where motors are in use constantly, prolonging gearbox and motor life.

Benefits of ball bearings

Ball bearings are generally the more popular choice with axial fans, due to their reputation for longevity and their ability to operate in higher temperatures. Another plus is they are not limited by mounting preferences. They’re able to be mounted in any axis position, which is excellent for certain designs.

RS PRO Brushless EC, AC Axial Fan- Variants

• OA60EC-UR-1WB, Wire Lead - RS stock no: 230-3031


• OA60EC-UR-1WBIP68A, Wire Lead, ATEX rated, - RS stock no: 230-3032

Why would you choose RS PRO?

RS PRO offers a wide range of Axial fan products to suit your applications. Our range has been selected for its high quality and reliability. We understand quality is of great importance to any engineer and have ensured that all RS PRO Axial Fans are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
