RS PRO Solid State Relay, 20 A Load, Panel Mount, 200 V ac/dc Load

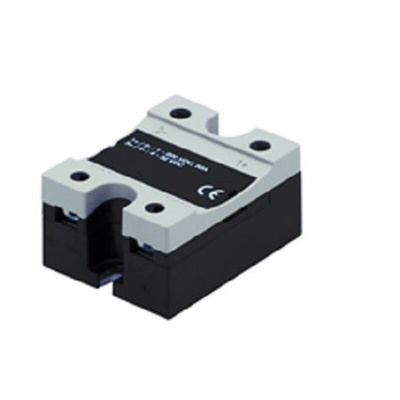

RS PRO RM1D Solid State Relay

RS PRO is proud to introduce this superb RM1D series, solid-state DC switching relay. Upon inspection, the RM1D is controlled by a DC voltage, offers power connection and control connection points via screws with captive washers & integrated over-voltage protection.
The RM1D series is designed for panel mounting or for mounting on a heatsink. The switching of the RM1D is controlled by 4.5 V to 32 V dc and there’s an LED that indicates a control voltage presence on the SSR.

Structure

• 1+ Power connection, Load connection, or positive supply connection


• 2- Power connection, Load connection, or ground supply connection


• 3/A1+ Control connection, Control supply signal


• 4/A2- Control connection, Ground connection for control

Features and Benefits

• DC Panel Mount SSR


• 200 VDC 20 A


• 4.5 to 32 VDC Control Voltage, with LED indication


• High switching frequency 1000Hz


• Clip-on IP20 Terminal Cover


• Self-lifting terminals


• Isolation input / output 3750 V rms


• Operational voltage: 1 VDC - 60 VDC


• Leakage current @ rated voltage: 0.1 mA DC


• Pickup Voltage: 4 V


• Drop-out voltage: 1.2V


• Response Pickup: <100 Us


• Operating Temp: -20 °C to 80 °C

Why would you choose this solid-state relay?

• Offers 3750 Vrms isolation between input and output


• Ideal solution when switching response times, from ON to OFF and vice versa, are critical to the application


• Fully solid-state to ensure trouble-free operation over a high number of switching cycles

What are the main advantages?

• No moving parts to wear out


• SSRs switch both "ON" and "OFF" much faster


• Resistant to vibration and shock


• Immune to harsh environments


• Millions of switching actions without breakdown


• Silent operation

Applications

• DC heaters


• Solenoid valves


• Test equipment


• Connection and disconnection of battery sources

RS PRO Datasheet
