RS PRO Solid State Relay, 4 A Load, DIN Rail Mount, 60 V Load

RS PRO DC Switching Solid State Relay - 4A

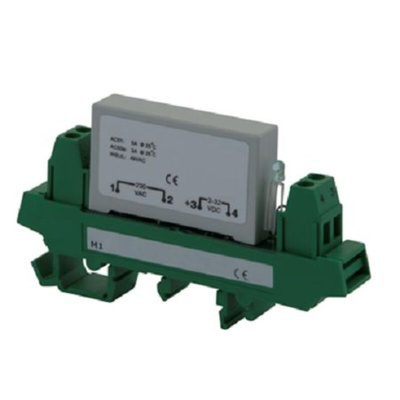

Introducing the RS PRO miniature DC solid state relay mounted on a DIN EN adapter. This solid-state relay is commonly used in applications where there's a need for fast switching of small DC loads with a high input/output insulation of more than 4000 VAC RMS. This SSR switches on and off in accordance with the applied control voltage and offers control visualisation by LED.

Features and Benefits

• Miniature DC SSR mounted on DIN EN adapter


• Transfer signals with electronic circuits


• Control visualisation by LED


• Surface mount technology


• Potting compound flame retardant silicone rubber

General Specification

• 4 A, 60 VDC


• Control voltage: 4.25 VDC – 32 VDC


• Isolation input / output: 4000 VAC rms


• Operating Temperature: -20°C to 80°C


• Blocking Voltage: 60V DC


• Dropout Voltage: 1 VDC


• Minimal Operational Load: 1mA


• Switching Frequency: <100Hz


• Off state leakage current: <0.01mADC

Dimensions

• 43 mm x 25.4 mm x 10.5 mm

Applications

• Heaters


• Motors


• Valves


• Solenoids
