RS PRO Solid State Relay, 55 A Load, Panel Mount, 530 V ac/dc Load

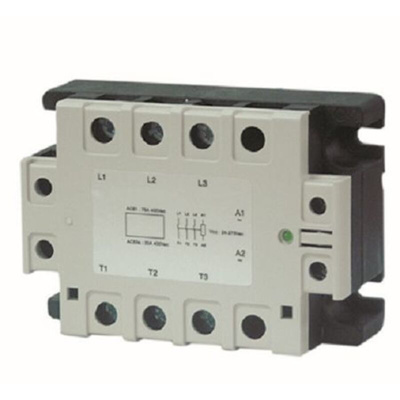

RS PRO Solid State Relay, 3-Phase ZS Type RZ3A

Brought to you from the trusted brand RS PRO, a solid-state relay from the RZ3A family. This SSR is designed for switching various loads motors, transformers, and heating elements. Offers the capacity of switching high voltages up to 530 VAC RMS and includes an in-built varistor for transient protection especially in heavy industrial applications.

When it comes to higher reliability and load cycle capability this SSR has three semiconductor power units soldered directly onto the direct copper bonded (DCB) substrate and there’s also an in-built LED status indicator for applied control voltage.

Features and Benefits

• 3 phase 55A per phase solid state relay


• Zero Switching


• Industrial housing


• Built in LED


• Built in varistor, suitable for heavy applications

General Specification

• Blocking Voltage 1200Vp


• Non-rep surge current t=10ms 600Ap


• Drop out voltage 1.2VDC


• Input current <23mA


• On-state Voltage drop < 1.6Vrms


• Response time pickup @50Hz= 10ms


• Operating temp: -30°C to 80°C


• Control voltage: 24-275 VAC / 24-50 VDC


• Rated operational voltage: 42-530VACrms

Applications

3 Phase solid state relays are found in industrial applications such as;

• Plastic extrusion machines


• Thermoforming machines


• Blow moulding machines


• Coffee machines


• Electrical ovens


• Dryers


• Air handling units
