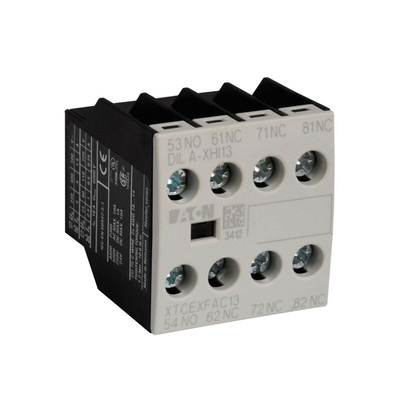

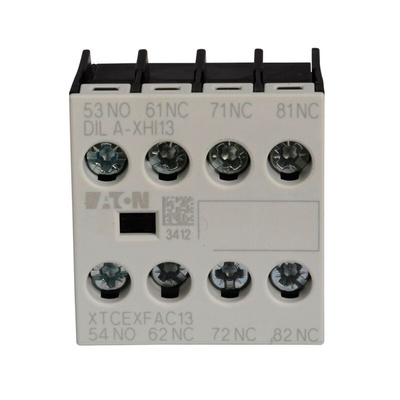

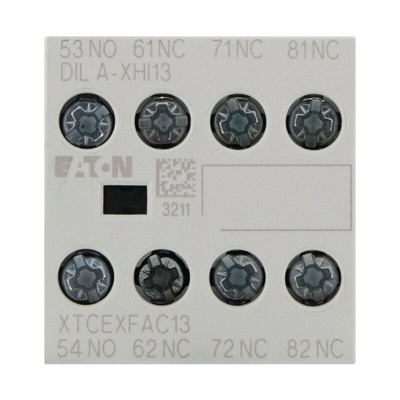

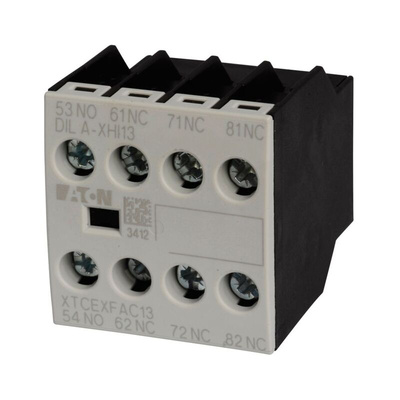

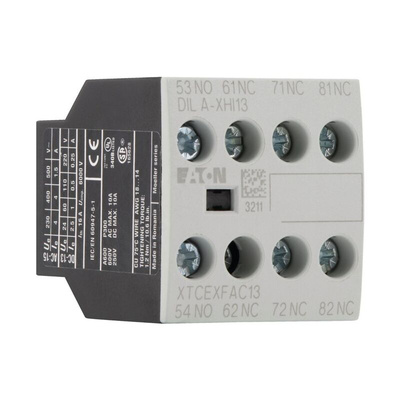

276425 DILA-XHI13, Eaton Auxiliary Contact, 4 Contact, 1 N/O, 3 NC, Front Fixing, DILA, DILM7-DILM38

Eaton Auxiliary Contact, 500V Voltage Rating, 16A Current Rating - DILA Series - DILA-XHI13

Need to boost your industrial setup's connections? Pop this auxiliary contact from Eaton onto your contactor to expand your system by linking up to four additional devices. There are 3NC contacts for hooking up support components such as fans and 1NO that's best-suited for user-supervised tools like motors. Thanks to the high 10 million mechanical lifespans, you can rely on this unit for long-term performance. It keeps up with your fast-paced equipment, as it handles up to 9000 operations an hour.

Features & Benefits

• Compact dimensions of 36 (W) x 45 (L) x 38mm (H), so takes up minimal space in busy setups
• Light 48g weight won't put strain on your contactor
• Screw connection allows for speedy wiring and achieves vibration-proof connections
• IP20 rating means it's touch-proof, so safe to handle during installation and maintenance
• Interlocked opposing contacts to boost electrical safety

Can this device withstand surges?

Yes, a high 6000V impulse withstand rating means you can rest easily knowing the contact withstands potentially damaging electrical spikes, so it's a robust option.

How do I mount this unit?

It fixes to the front of your existing contactor so you can install or remove it without disassembling your whole setup.

Note

Eaton formerly known as Moeller

Datasheet - 276425

Instruction Sheet - DILM/DILA Series

Catalogue - Motor Starters and Contractors
