M014-B Power Management Function, M5Stack M014-B SERVO2 Module 16 Channels - 13.2 Motor Driver for PCS9685, SY8368AQQC for M5 Core, M5StickC, M5StickV

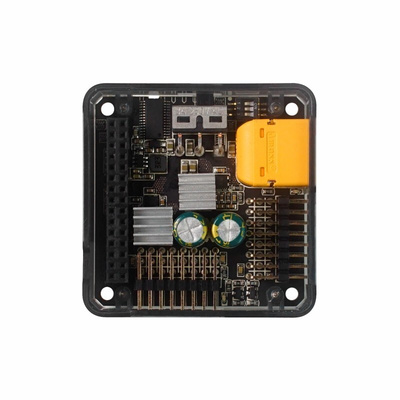

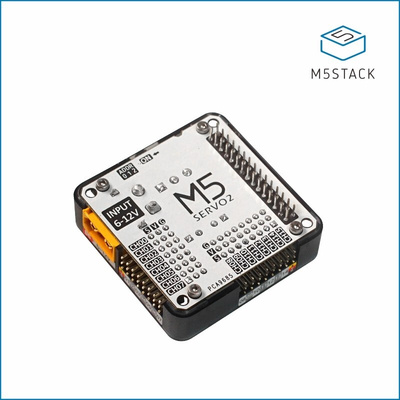

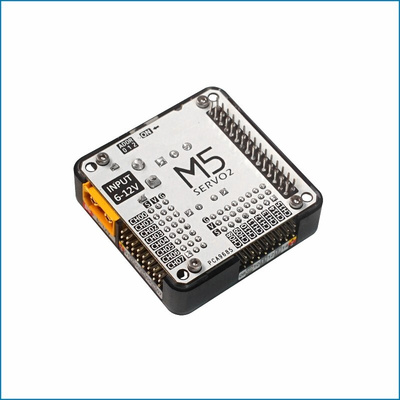

The M5Stack SERVO 2 is an updated servo driver module in the M5Stack stackable module series. It uses a PCA9685 16 channel PWM controller to control 16 channel servos at the same time. The power input is 6-12V DC and two SY8368AQQC chips are used for voltage reduction. The maximum total power output of dual channel is 35W (5V / 3.5A * 2), and the maximum output power of single channel is 25W (5V / 5A). When the battery base is used for power supply, the maximum output power is 5V / 2A. The module communicates with the host directly through I2C (the default address is 0x40) however the I2C address can be changed(0x40 - 0x47) through the dial switch. This also means that multiple Servo 2 modules can be stacked and used simultaneously. There is a power switch on the board to control the power supply of

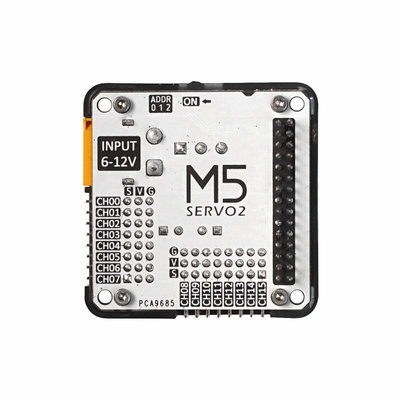

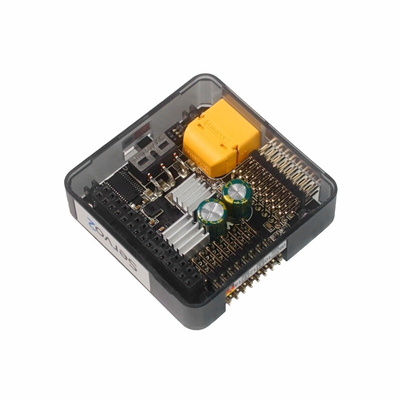

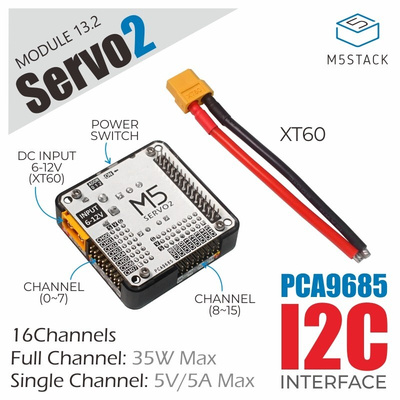

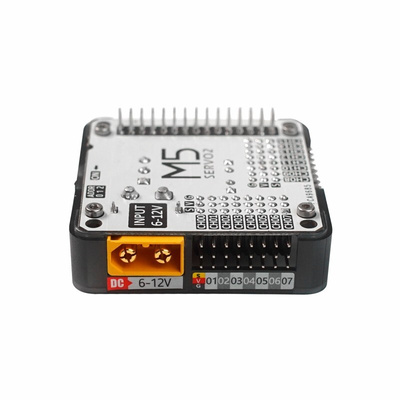

16x actuator driv e channel2X power indicatorI2C address adjustableExternal DC power supply input: 6-12VDC connector ty pe: XT60
