M035 Power Management Function, M5Stack M035 GRBL Module 13.2 Stepmotor Driver Motor Driver for ATmega328P-AU, DRV8825PWPR for M5 Core, M5StickC,

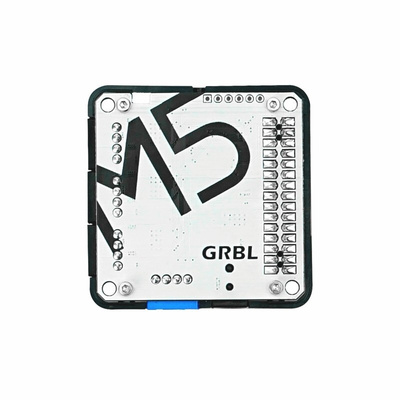

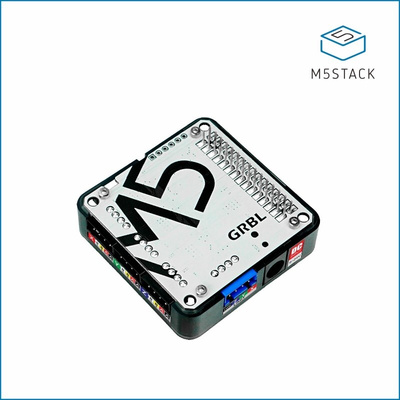

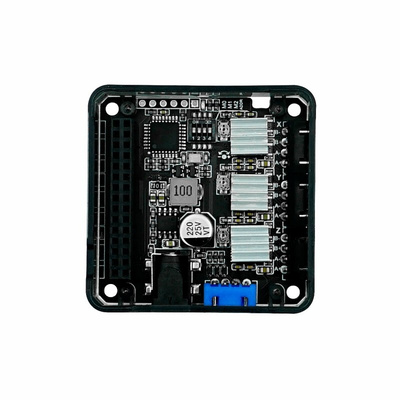

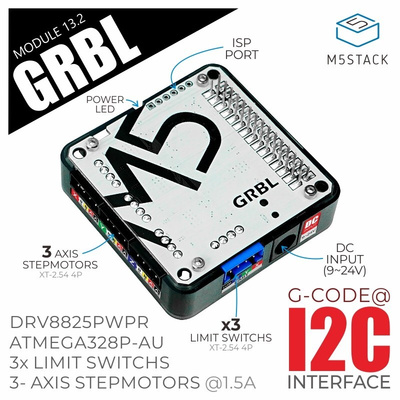

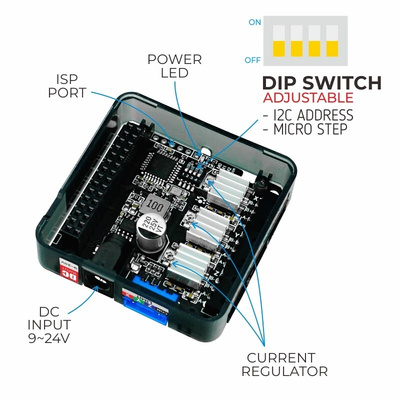

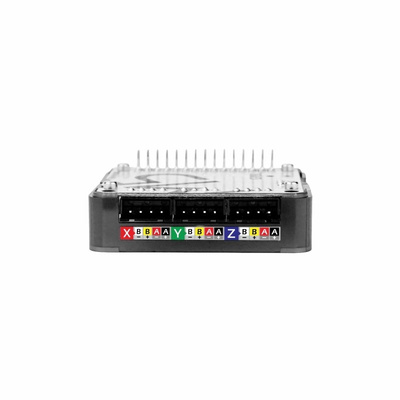

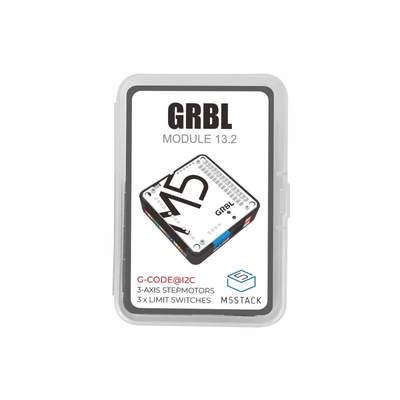

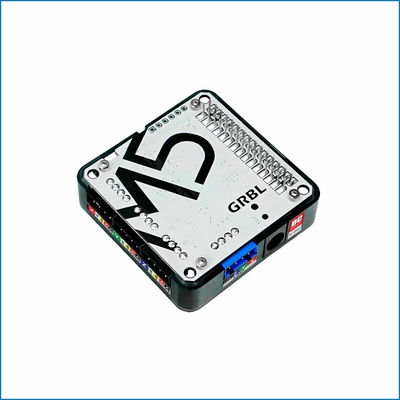

The M5Stack GRBL 13.2 is a three-axis stepper motor driver module in the M5Stack stacking module series. It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chip control ways, which can drive three bipolar steppers at the same time. Using the I2C communication interface (default address:0x70) and integrated DIP switch for adjusting motor step subdivision (maximum support of 1/32 step subdivision) and I2C address adjustment, You can achieve six-axis control by stacking two GRBL 13.2 modules. The power input interface is DC/9-24V, the motor drive current can reach 1.5A, and three sets of limit switch signal interfaces are open, which can be used to connect an external limit switch to realize the motor braking function. Suitable for a variety of stepping motor motion control scenarios, such as printers, robotic arms, etc.
Driv e current up to 1.5ADriv e bipolar stepper motorMaximum 1/32 mode STEP subdiv ision
