T001 Accessory Type, M5Stack T001 Power Supply Unit for use with M5ATOM, M5Camera, M5Stick, M5StickC, M5StickV

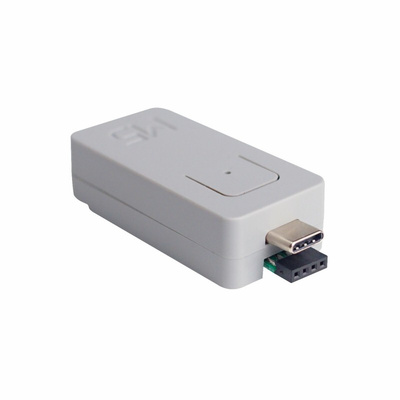

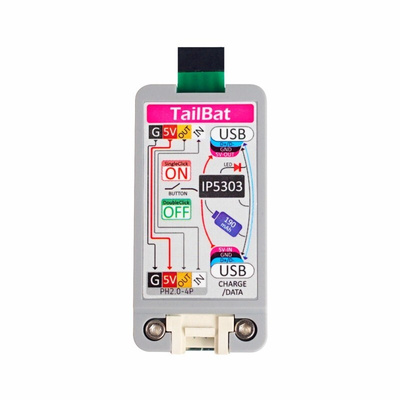

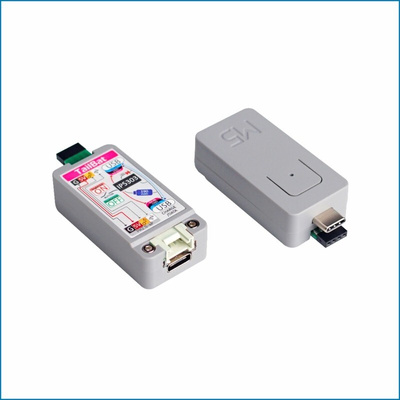

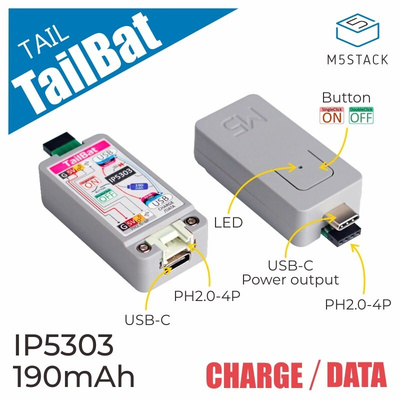

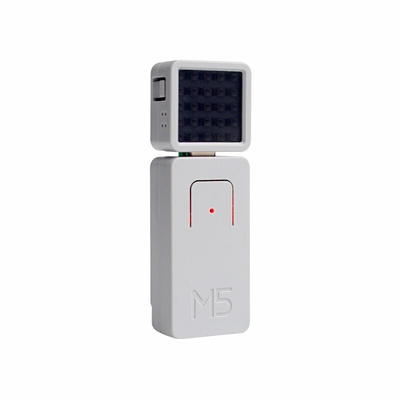

The M5Stack TailBat is an external battery accessory designed for M5ATOM. If the TailBat module is inserted into the M5ATOM,it can directly supply power to the , enabling the M5ATOM to be used in mobile applications. The TailBat contains a 190mah battery and features a physical button. It is controlled by the power management chip IP5303. When the power is turned on, the red led will turn on，the led flashes when charging, and is always on when fully charged. The operation method is the same as that of M5Stack Core: Click to turn on the power, double-click to turn off the power. Since the TailBat has been designed simply to add battery power, it will not affect the original GROVE Connection mode and USB functionality. The built-in battery can only be charged through the USB typeC interface, not through the grove interface.
Adapted f or ATOM Matrix/ATOM Lite f orm f actorPlug and playBuilt in rechargeable lithium batteryLED indicator
