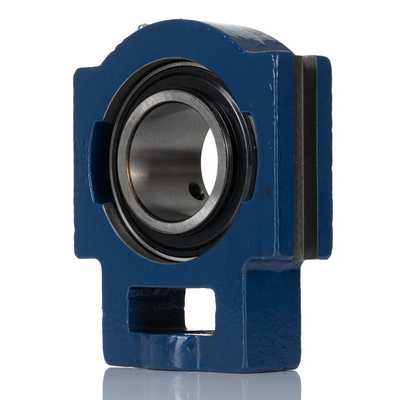

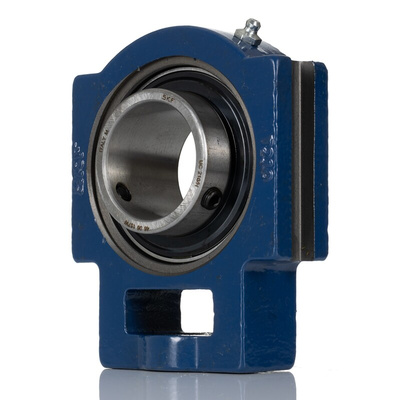

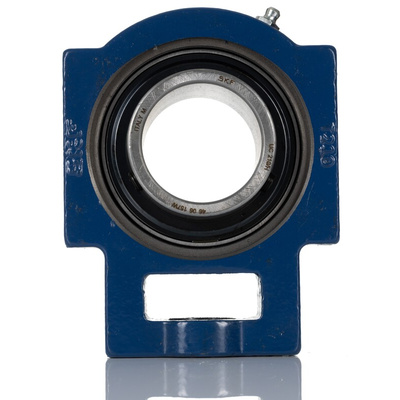

SKF Take Up Bearing 50mm ID 149mm OD UCT 210/H

SKF Take-Up Bearing, 50mm ID, 149mm OD, Cylindrical Bore Type - UCT 210/H

Keep your conveyor system ticking over smoothly with this take-up bearing from SKF. It features a deep-groove-type insert bearing mounted in cast iron housing. As it fits into a take-up frame, it maintains alignment and tension in belt and pulley equipment to ensure your workflow stays on an even keel. The unit comes into its own when carrying out alternating rotation as it handles a 35.1kN dynamic load with ease. Installation is a breeze, thanks to a pair of set screws positioned on the bearing's inner ring. The screws are fixed at 120° to offset vibration and eliminate shaky performance.

Features & Benefits

• Industry-standard M10 mounting screws for wide compatibility
• 2.5kg weight minimises load on your infrastructure
• Comes with a lubrication hole for easy grease application during maintenance
• Cast iron housing withstands mechanical stress, impacts and abrasion for a long service life
• High static load rating of 23.2kN suits demanding applications

Applications

• Industrial automation
• Processing and packaging facilities
• Distribution centres

What limiting speed will I get from this take-up bearing?

Its limiting speed is 3,300r/min, so it's an ideal option for fast-paced applications.

Datasheet - Y/UCT 210/H
