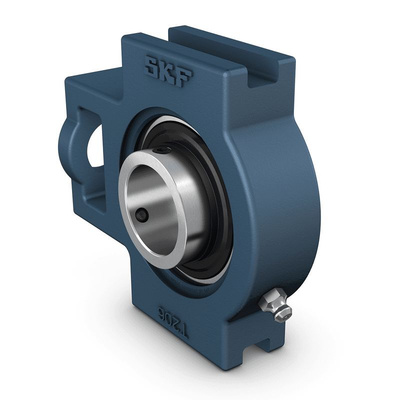

SKF Take Up Bearing 65mm ID 82.5mm OD Y/UCT 213/H

SKF Take-Up Bearing, Cast Iron Housing, 2350r/min Limiting Speed, 65mm ID, 82.5mm OD - Y/UCT 213/H

Need a rotating component that lets you tweak the position of your shaft? This take-up bearing from SKF has you covered. It's made up of an insert bearing set in a housing that accommodates adjustment so you can count on precise alignment. The inner ring extends on both sides for quick mounting on the shaft. To keep the inner ring stable, you can simply tighten the two set screws through it. A 120° angle of separation between the screws offers added stability, helping to balance the mechanical load.

Features & Benefits

• Limiting speed of 2,350r/min to withstand high-speed rotation
• Relubrication hole for simple refilling with grease
• Seal and flinger on both sides to prevent contamination from dust and moisture
• Basic dynamic load rating of 57.2kN and static load rating of 40kN, so it's suitable for heavy-duty tasks

Applications

• Oil and gas industry
• Aerospace engineering
• Bottling plants

What material is this assembly made from?

The insert bearing is made from rugged steel that stands up to impacts and corrosion. For added durability, the housing is made from wear-resistant cast iron.

Datasheet - Y/UCT 213/H
