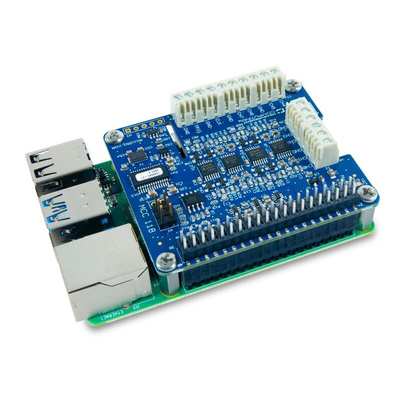

6069-410-000, Digilent MCC 118 Voltage Measurement DAQ HAT for Raspberry Pi

Digilent’s MCC 118 voltage measurement HAT (Hardware Attached on Top) board is designed for use with Raspberry Pi based data acquisition systems. This MCC 118 DAQ HAT has a fixed +/-10V input range, an external scan clock and an external digital trigger input also included. Complete with 2 x 20 Header connectors and Screw terminal connections.

The board comprises of eight single ended analog voltage inputs with 12-bit resolution and a sample rate of 100 kS/ or 320 kS/s aggregate for stacked boards where eight boards can deliver up to 64 channels of data. The MCC 118 HAT add-on board sample buffers allow high-speed data acquisition and the 40W GPIO (general purpose input/output) connector conforms to Raspberry Pi HAT specifications. Powered with 3.3 V provided by the Raspberry Pi through the GPIO header connector.

Software for MCC 118 DAQ HAT includes programming API C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided, supported Operating Systems such as Linux®/Raspbian.

Note: Raspberry Pi is not included

Datasheet - 6069-410-000
