6069-410-003, Digilent MCC 152 Voltage Output and DIO DAQ HAT for Raspberry Pi

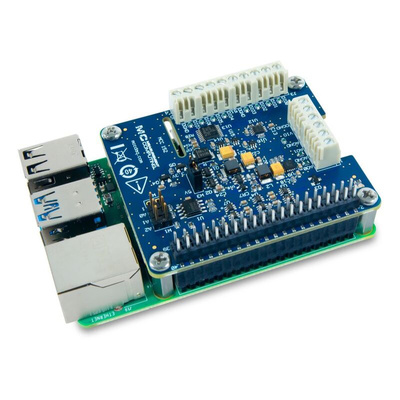

The Digilent voltage output and DIO DAQ HAT is designed for use with Raspberry Pi, the most popular single-board computer on the market today. A HAT is an add-on board with a 40W GPIO (general purpose input/output) connector that conforms to the Raspberry Pi HAT specification. The MCC 152 HAT provides two analog outputs and eight digital I/O bits. Up to eight MCC HATs can be stacked onto one Raspberry Pi. With CMOS input thresholds, selectable voltage operation, and 5 V tolerance for the digital inputs, the digital channels support both 3.3 V and 5 V logic types.

Two 12-bit simultaneous voltage outputs
5 mA output drive, sourcing
0.8 V/μs slew rate
Eight bidirectional digital bits
5V / 3.3V operation
CMOS input thresholds
Programmable input polarity
Screw terminal connections

Datasheet - 6069-410-003
