23.3000-22, Staubli Red Female Banana Socket, 4 mm Connector, Tab Termination, 24A, 1000V, Gold Plating

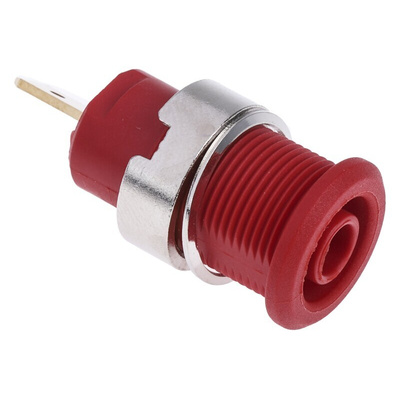

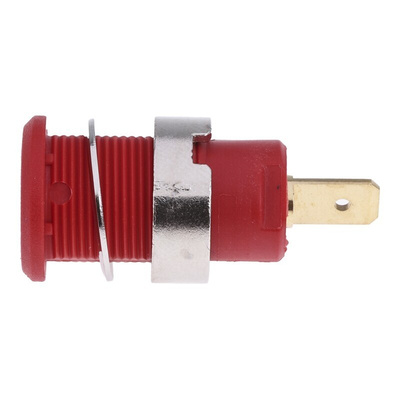

Multi Contact Socket – Red Female Banana Socket SLB4-F

This Multi Contact red, female socket is a 4mm connector and is used for joining wires to electronic equipment. This multi contact socket is equipped with spring-loaded plugs with a rigid insulating sleeve. The female socket can be screwed into predrilled panels of plastic, metal and other materials and it has a voltage rating of 1kV and current rating of 24A

Features and Benefits

Tab termination
Gold contact plating and brass contact material
Length is 31.5 mm
1000 V, CAT III, 24 A
Flat connecting tab 4.8 mm x 0.8 mm
Panel Mount socket

Applications

These 4 mm cylindrical connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in many applications such as:
Automotive (car manufacturing plant equipment)
Motorsports
Aeronautics (plant equipment)

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Colours available in this series include:
404-137 – Black 23.3000-21
404-171 – Red 23.3000-22
404-143 – Blue 23.3000-23
230-6316 – Yellow 23.3000-24
404-159 - Green 23.3000-25
893-5743 - Violet 23.3000-26
163-192 - Brown 23.3000-27
163-198 - Grey 23.3000-28
404-187 - White 23.3000-29

Ø 4 mm Safety sockets

4 mm Panel-mount Sockets Data Sheet
