RC32504A-EVKGNA#0 Clock/Timer Function, Renesas Electronics RC32504A-EVKGNA#0 | FemtoClock 2 Evaluation Kit Clock Generator Evaluation Board for RC32504A for RC32504A

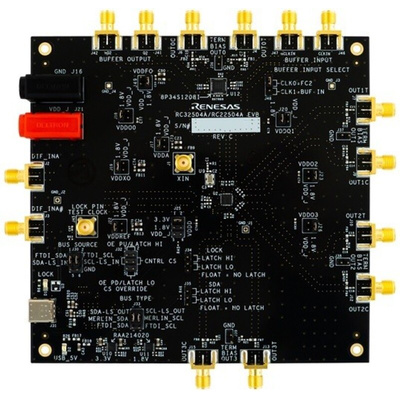

The Renesas Electronics RC32504A evaluation board (EVB) is designed to help users evaluate the RC32504A and RC22504A Clock Generators, also known as FemtoClock 2. It supports Jitter Attenuator and Synthesizer functionality, and the RC22504A supports only Synthesizer functionality. When the evaluation board (EVB) is connected via USB to the user s computer running the Renesas RICBox™ Software, FemtoClock 2 can be configured and programmed to generate frequencies with best-in-class performance. FemtoClock 2 has four output pairs that can be programmed to CMOS style, LVDS style, or HCSL style outputs.
Develop configurations with Renesas RICBox software and upload to the EVB through USCan be powered from the USB connectionEVB is a combination evaluation with Renesas Low Noise power supply regulators and Renesas Low Noise fan-out bufferClock output pairs are AC coupled and can be connected directly to test equipment through coaxial cables
