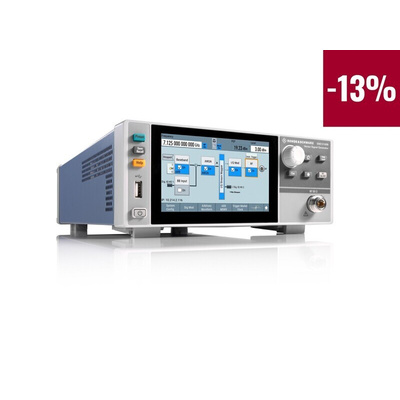

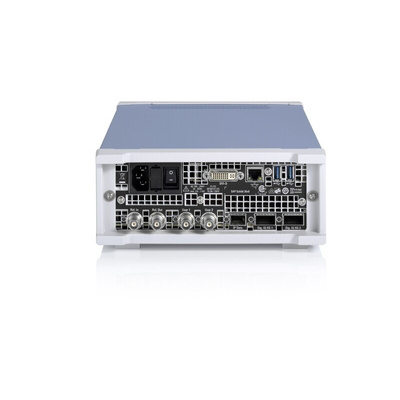

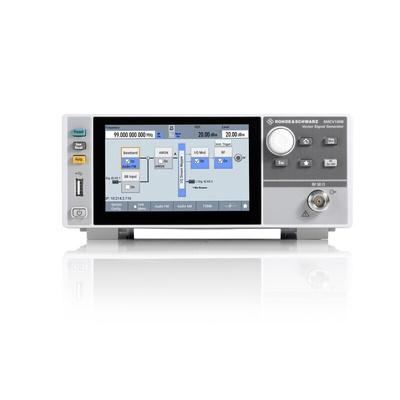

SMCV100BP2 Model Number, SMCV100BP2 | Rohde & Schwarz SMCV100B RF Signal Generator, 4kHz min, 3GHz max

SMCV100B Vector Signal Generator + SMCVB-B103 8 kHz - 3 GHz + SMCVB-K197 AM/FM/PHIM (via baseband) + SMCVB-K198 pulse modulation (VIA BB) + SMCVB-K199
SMCV100BP2 consist of -SMCV100B vector signal generator-SMCVB-B103 8 kHz - 3 GHz-SMCVB-K197 AM/FM/PHIM (via baseband)-SMCVB-K198 pulse modulation (via BB)-SMCVB-K199 custom digital modulation.
First multistandard platform for broadcast, navigation, cellular and wireless applicationModern RF signal generation concept with direct digital RF upconversion up to 2.5 GHzHigh output powerModulation bandwidth up to 240 MHz
The Rohde \u0026 Schwarz vector signal generator features a new direct RF DAC concept for RF signal generation. This concept enables I/Q modulation and upconversion in the digital domain, which eliminates the I and Q imbalance errors and LO leakage associated with traditional analog I/Q modulators.
SMCVB-B103 8 kHz - 3 GHz
User friendly in every detailMaximum flexibility in production
SMCVB-B103 option has 4 kHz to 3 GHz range
SMCVB-K197 AM/FM/PHIM (via baseband)
0.1 Hz to 100 kHz frequency setting rangeSine wave signal type
SMCVB-K197 is used for amplitude modulation, frequency modulation and phase modulation.
SMCVB-K198 pulse modulation (via BB)
single pulse, double pulse modes
SMCVB-K198 is used for pulse modulation. It has internal pulse generator.
SMCVB-K199 custom digital modulation
standard setting range
SMCVB-K199 is used for custom digital modulation ie. ASK, FSK, Variable FSK, PSK and QAM.
