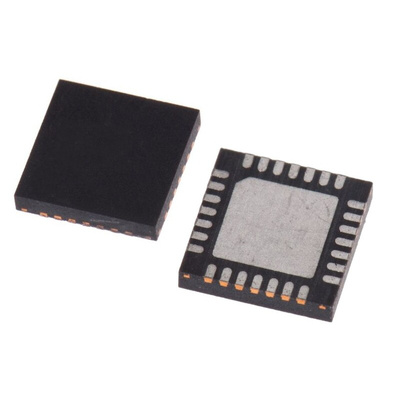

The ON Semiconductor series AX5045 is a true single chip, narrow-band, ASK and FSK RF transceiver for the 60-525 MHz and 700-1050 MHz frequency bands. It offers the unique combination of ultra-low power consumption for transmit and receive operation combined with highest sensitivity and high selectivity. A maximum link budget of 158 dB at 100 bps is achieved, without the need of any additional external front end, thanks to the built-in +23 dBm integrated power amplifier. Several tens of km/miles can be achieved, even in an urban environment, using simply a single chip solution, thus reducing drastically the overall BOM.
Carrier frequency range 27 - 1050 MHz
Ultra-low power
Constant TX output power over the full VDD range of 3.0 - 3.6 V
Fully autonomous lowest power wake-on-radio mode (500 nA)
Packet RX/TX without microcontroller intervention
Datasheet - AX5045-1-TW30| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
