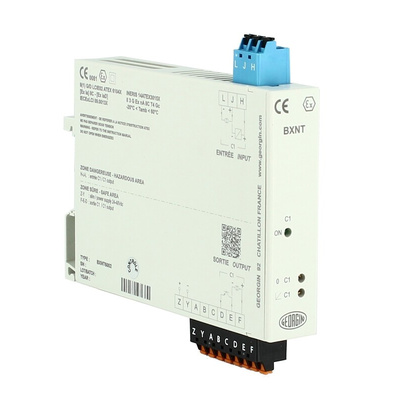

BXNT6002 Barrier Type, BXNT6002 | GEORGIN 1 Channel Intrinsic Security Power Supply, ATEX

The galvanically insulated interface is an associated intrinsic safety item of equipment that is installed in a safe zone or in zone 2 in an IP 54 housing, thanks to the Ex nA protection mode. Its mission is to limit the level of energy that may appear in an electric circuit routed through a potentially explosive area, whatever the connection established upstream.
In addition to its energy-limiting function, its facilitates the use of signals in safe areas (e.g., relays), converts signals (e.g., 4/20 mA to 0-10V) or duplicates signals. Other functions are also available, such as the threshold relay or powering intrinsic safety.
Transmitter power supplyInput: 1 x 4/20mAOutput: 1 x 4/20mAOption: without, clamp terminalsPower supply: 24/48 VdcDIN rail mounting housing
ATEX / IECEx informations:EC type examination certificate LCIE 02 ATEX 6104XIECEx LCI 09.0013X certificate[Ex ia] IIC (-20 °C Ta 60 °C)Group II (surface) - category (1) G/DInstallation in safe zoneBarrier for equipment installed in zone 0,1,2 et 20,21,22See leaflet for a safe use
