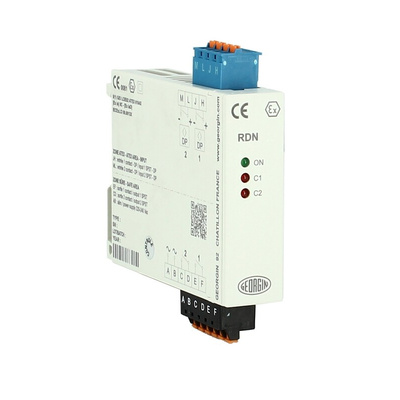

RDN211002, GEORGIN 2 Channel Intrinsic Security Relay, ATEX

The galvanically insulated interface is an associated intrinsic safety item of equipment that is installed in a safe zone or in zone 2 in an IP 54 housing, thanks to the Ex nA protection mode. Its mission is to limit the level of energy that may appear in an electric circuit routed through a potentially explosive area, whatever the connection established upstream.

In addition to its energy-limiting function, its facilitates the use of signals in safe areas (e.g., relays), converts signals (e.g., 4/20 mA to 0-10V) or duplicates signals. Other functions are also available, such as the threshold relay or powering intrinsic safety.

Intrinsic safe relay
Input: 2 x switch or proximity sensor
Output: 1 x relay (SPST) per channel
Option: without, clamp terminals
Power supply: 24/48 Vdc
DIN rail mounting housing

ATEX / IECEx informations:
EC type examination certificate LCIE 02 ATEX 6104X
IECEx LCI09.0013X certificate
[Ex ia] IIC (-20 °C < Ta < 60 °C)
Group II (surface) - category (1) G/D
Installation in safe zone
Barrier for equipment installed in zone 0,1,2 et 20,21,22
See leaflet for a safe use

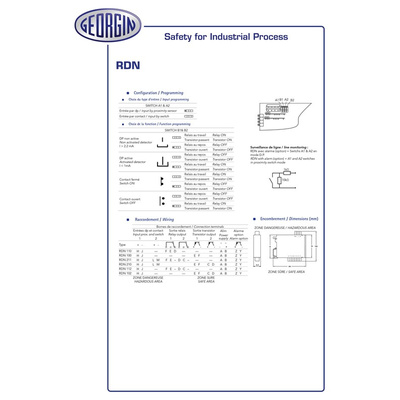

Datasheet - RDN211002
