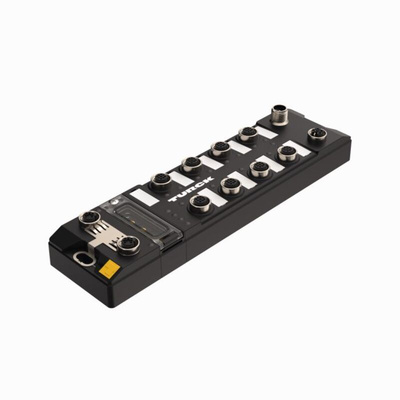

TBEN-LL-16DOP, Turck TBEN-L Series I/O module

Turck I/O Module, 24V DC Supply Voltage, 2A Output Current - TBEN-L Series - TBEN-LL-16DOP

Network communication getting lost in translation is a thing of the past with this I/O module from Turck. Its 16 PNP outputs make it highly compatible with widely used master and slave equipment in automation systems. The versatile device is at home working with different communication protocols, such as Modbus TCP, Ethernet/IP and PROFINET. There's no need to manually select programmes, as its automatic protocol detection gets you set up in a jiffy. With an MTTF of 165 years, this module is built to survive the long haul.

Features & Benefits

• Delivers 10Mbps or 100Mbps for rapid data transmission
• Short-circuit protection prevents damage caused by electrical surges
• Space-efficient dimensions of 60.4 (W) x 230.4 (L) x 39mm (H) fit neatly into tight areas
• Made free from halogen, so it doesn't release toxic fumes in the event of a fire

Applications

• Process control
• Industrial automation
• Recording studios
• Electronics manufacturing

Can I use this I/O module in challenging conditions?

Yes, you can, thanks to the unit's IP69K rating. This means it's completely dust-resistant and withstands high-temperature, high-pressure wash-downs.

Datasheet - TBEN-LL-16DOP

Product Flyer

Instruction Sheet - TB Series

Manual - TBEN-LL-16DOP
