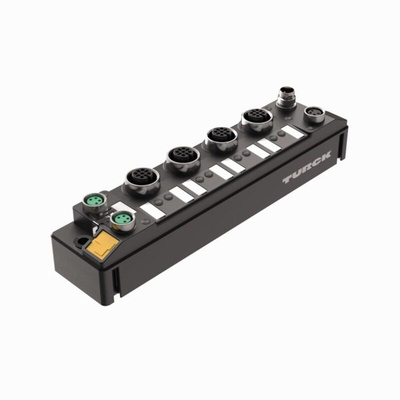

TBEN-S2-8DXP, Turck TBEN-S Series I/O module, M8 4-pin, 4 way, 8 port

Turck I/O Module, Multiprotocol Module Type, 10 and 100Mbps Data Transfer Rates - TBEN-S Series - TBEN-S2-8DXP

Do you need a way to hook up your field devices to a PLC CPU? Get connected with this Turck I/O module. Thanks to its eight input and eight output channels, it sends signals between your processor and multiple components, like push buttons. You can even transfer data on a LAN using its built-in Ethernet switch. Harsh settings are no problem for this tough nut, as it has a wide operating temperature range between -40°C and +70°C. An MTTF of 238 years at +20°C means you can rely on it for long-lasting performance.

Features & Benefits

• I/O terminals have an M12 5-pin design for compatibility with standard cabling
• Supports data transfer rates of 10 and 100Mbps for versatility
• Glass fibre-reinforced housing for resistance to impact and heat
• Compact size of 144 (L) x 32 (W) x 32mm (H) to maximise space in your setup
• Built-in LED indicators for hassle-free status monitoring

Applications

• Automotive manufacturing
• Energy metering
• Safety control systems

Is this product waterproof?

Yes. This I/O module has an IP69K rating, which means it's dust-tight and protected against high-temperature, high-pressure water jets.

Datasheet - TBEN-S2-8DXP

Product Flyer

Manual

Guide - TB Series

Manual - Backplane Ethernet Extension Protocol
