TBIL-S4-8DIP, Turck TBIL Series I/O module, M12 4-pin, 4 way, 8 port

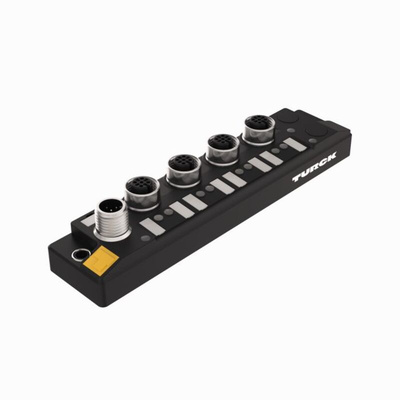

Turck I/O Module, 8 Digital Inputs, M12 Connection Type - TBIL Series - TBIL-S4-8DIP

Creating secure connections is a breeze with this I/O module from Turck. Its industry-standard M12 ports let you link up external devices without a hitch, enabling it to send information to your automated and process control systems. This component features eight digital inputs, making it a hard-working multitasker. Thanks to its compact dimensions of 144.3 (L) x 32 (W) x 32mm (H), the product fits into tight spaces. The durable nylon and glass fibre-reinforced housing is resistant to impact and heat to withstand the rigours of challenging industrial environments. An input delay of just 0.01ms means you get lightning-fast performance.

Features & Benefits

• Light weight of 158g to minimise strain on your setup
• Wide operating temperature range between -40°C and +70°C for use in demanding settings
• IP69K rating means it's fully protected against dust and high-temperature, high-pressure water jets

Applications

• Industrial automation
• Data acquisition systems
• Communication controls

How do I mount the module?

The device has two 4.3mm mounting holes, allowing you to attach it directly to a surface using screws.

Datasheet - TBIL-S4-8DIP

Manual

Manual - TBIL-S4-8DIP
