RS PRO Aluminium Case for use with Raspberry Pi 4 in Silver

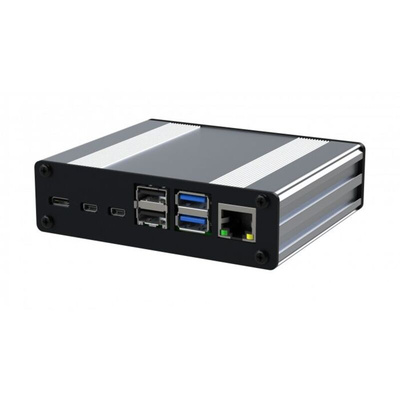

RS PRO Industrial Raspberry Pi 4 Enclosure

RS PRO is proud to introduce this excellent solution for the Raspberry Pi 4. This well-thought-out enclosure offers the very best in design and functionality and comes with a heatsink kit included. Upon inspection, the enclosure is supplied in kit form which is a pleasure to assemble with each part integrating seamlessly. The enclosure is made from aluminium and has 108 mm x 30 mm external dimensions.

What are the benefits?

The RS PRO Industrial Raspberry Pi 4 enclosure is a rugged enclosure kit. By utilising a micro HDMI Pi 4 extender board it can turn the power and micro HDMI connectors through 90°. The ethernet and USB connectors are on the same path, the rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi4. Comes with heatsink kit included.

Why would you choose this Pi enclosure?

The Raspberry Pi 4 is a delicate piece of hardware that needs to be safeguarded from external elements. This Pi enclosure once assembled is purpose-built to house the device inside and offers protection from contaminants, damage, or breakage.

Features and Benefits

• Raspberry Pi Case


• Exclusive to Raspberry Pi 4


• Heatsink kit included


• Aluminium material


• Rugged


• Passive extender board


• Dovetail slots down the side which accept a mounting bracket for surface mounting


• Supplied In kit form - Raspberry Pi not included

Dimensions

• Rear endplate thickness: 3 mm


• Front-end plate: 1.5 mm


• External dimensions: 108 mm x 30 mm

RS PRO Industrial Raspberry Pi 4 Enclosure Variants

• Black case, anodised finish – RS stock no: 230-9821


• Silver case, anodised finish – RS stock no: 230-9822

Kit Contains

• (a) 8 M3 x 10 Taptite Screws


• (b) 14 M2.5 x 5 Screws


• (c) 4 12 mm Standoffs


• (d) 3 10 mm Standoffs


• (e) 1 Aluminium End Plate


• (f) 1 HDMI Extender PCB


• (g) 1 Aluminium Carrier Plate


• (h) 1 Aluminium Extrusion


• (I) 1 Acrylic End Plate


• (j) 1 Small Heat Block


• (k) 1 Small Heat Pad


• (l) 1 Large Heat Block


• (m) 1 Large Heat Pad


• (n) 2 M3 x 5 Screws

Assembly Instructions

1. Take carrier plate (g) & attach standoffs (c) & (d) with screws (b). Attach small heat block (j) and large heat block (l) to carrier plate (g) with screws (n).
Peel the backing paper from the small heat pad (k) & stick the small heat block (j). Do the same for large heat pad (m) & large heat block (l). Now remove the remaining backing paper.
2. Plug extender board (f) into the HDMI & USB connectors on the Raspberry Pi board.
3. Place Raspberry Pi & extender on carrier plate assembly & secure with screws (b).
4. Turn board assembly over so carrier plate is on top & slide into the top slot of extrusion (h) as shown.
5. Attach aluminium (e) & acrylic (i) end plates to extrusion (h) with screws (a).

RS PRO Datasheet
