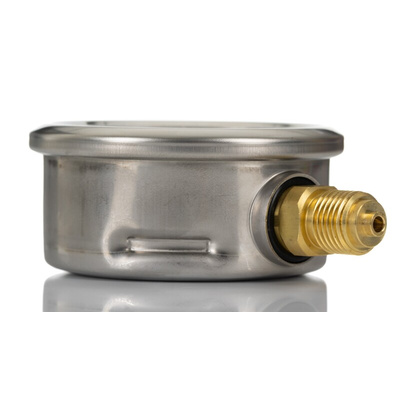

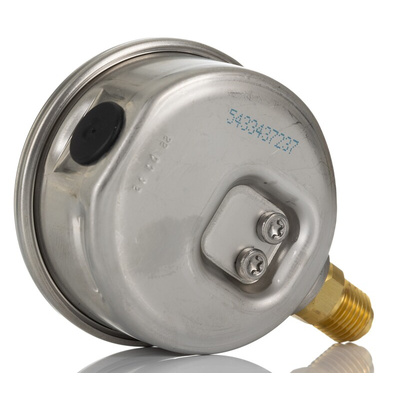

RS PRO G 1/4 Analogue Pressure Gauge 25bar Bottom Entry, 0bar min.

RS PRO Bourdon Tube Pressure Gauge

When it comes to high-quality gauges RS PRO is ready to meet your needs. We are proud to introduce a range of ’Bourdon Tube Pressure Gauges’ designed for measuring medium to high pressures in multiple applications. Upon inspection, each gauge has been beautifully crafted and assembled, the plastic window is crystal clear and the stainless-steel case & ring bezel with a gloss finish add a touch of class. These gauges are filled with liquid glycerine, bottom entry orientated with a G process connection, and are available in multiple pressure ranges.

Special Features

Due to the liquid filling in the case, the pressure element and movement are efficiently damped. Therefore, these instruments are particularly suited to measuring points with high dynamic loads, such as fast load cycles or vibrations.
The cases are available in nominal sizes of 63 mm and 100 mm and fulfil IP65 ingress protection. With an accuracy of up to class 1.0, this pressure gauge is suitable for a wide range of applications in the industry. For mounting in control panels, the pressure gauges with a back-entry process connection can be fitted with a mounting flange or with a triangular bezel and mounting bracket.

Features and Benefits

• Bourdon Tube Pressure Gauge: Bottom Entry or Back Entry


• Robust design


• Medium to high pressure measurements


• Glycerine Liquid filled


• Copper alloy wetted parts


• Stainless steel case


• Gauge Outside Diameter: 63 mm


• Connection Size: G 1/ 4


• Vibration and shock-resistant


• Scale ranges up to 1000 bar

Permissible Temperature

• Ambient: -20 … +60 °C Medium: +60 °C maximum

RS PRO Bourdon Tube Pressure Gauge Variants - Bottom Entry

• 6 bar, RS stock no: 231-0199


• 10 bar, RS stock no: 231-0191


• 16 bar, RS stock no: 231-0200


• 25 bar, RS stock no: 231-0192


• 40 bar, RS stock no: 231-0193


• 100 bar, RS stock no: 231-0194


• 250 bar, RS stock no: 231-0195


• 400 bar, RS stock no: 231-0196

RS PRO Bourdon Tube Pressure Gauge Variants - Back Entry

Applications

• Air conditioning systems


• Heating systems


• Compressors


• Medical engineering


• Operating machinery


• Hydraulics systems

Why would you choose RS PRO for Pressure Gauges?

Our extensive range ensures we have your ideal solution available. Browsing our offer is quick and easy with the vastly improved ’Apply Filters’ making it simple to select your pressure gauge. All products are supported with technical information as standard, and a customer service we are sure you will appreciate.

RS PRO Datasheet
