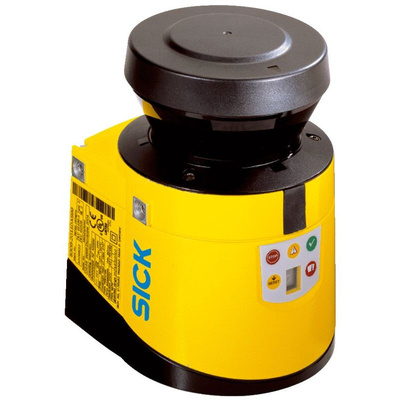

S30B-2011CA, Sick S300 Advanced Series Laser Scanner Laser Scanner, 30 mm, 40 mm, 50 mm, 70 mm Resolution

Overview

The S300 Advanced meets the highest standards and is particularly suitable for mobile and stationary applications. Production processes can be easily optimized thanks to the four protective fields and eight warning fields. The new triple-field mode allows the simultaneous activation of three fields: one protective field and two warning fields. The integrated EFI interface improves interoperability with other safety laser scanners and safety controls from SICK. In addition, the configuration memory integrated in the connection system facilitates quick commissioning and replacement of the device. The CDS software (Configuration & Diagnostic Software) is used to define the protective fields

At a glance

Compact size
2 or 3 m protective field range
270 ° scan angle
4 switchable field sets
Configuration memory integrated in the system connector
Safe communication interface (EFI) of SICK devices
Output of measurement data via RS-422
Reference contour for vertical applications

Your Benefit

Smooth integration thanks to its compact dimensions
Easy installation, commissioning and maintenance for fixed and mobile applications
Unparalleled cost-effectiveness: 270 ° scanning angle allows 360 ° control with just two scanners
Safety technology, without loss of productivity
Fast commissioning thanks to configuration memory
Easy modular expansions, limited wiring and additional functions with SICK safety controllers via EFI
Safety techniques, proven for decades, guarantee optimum reliability and availability, even under difficult conditions
Easy alignment and safe vertical operation

Applications

Protection of hazardous areas or prevention of bypassing at loading and unloading stations.
Protection of hazardous areas in production lines
Protection of driverless vehicles
Protection of small driverless vehicles (automated guided carts)
Access control at entry / exit stations
Access control on machines and installations
Protection of hazardous points at the installation site
Safe robotic platform for final testing of navigation systems
Secure material lock for standard palletizing tasks
Secure material lock for standard palletizing tasks

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - S30B-2011CA
