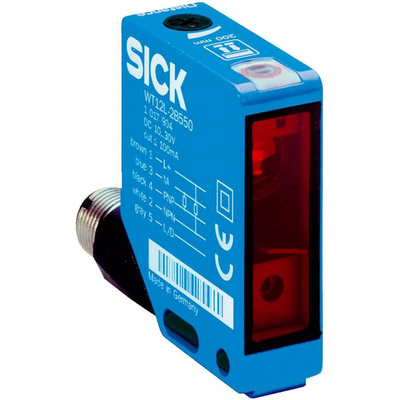

WT12L-2B550A02, Sick Background Suppression Photoelectric Sensor, Rectangular Sensor, 50 → 290 mm Detection Range

Overview

The W12L-2 series with laser technology is the perfect solution, suitable for the individual application case. The complete line of sensors in a rugged metal housing always delivers the performance you demand in object detection, reaction speed, industrial availability and laser protection.

At a glance

Best in Class laser performance in a metal housing
Optional Teflon coating available
Precise self-adhesive optics
Adjustable focus for reflex barriers
High switching frequency of 2.5 kHz
Connection by cable or swivel connector
Can be mounted using pass-through holes, oblong holes and dovetail
Laser protection class 1 or 2

Your Benefit

Reliable detection thanks to advanced chip technology combined with innovative laser technology
Small, clear and precise light spots thanks to laser technology allow easy and fast sensor alignment
Universal application possibilities thanks to a wide variety of products in a robust metal housing, with optional Teflon coating
Safe use of the device thanks to laser protection class 1 or 2
Insensitive to optical disturbances from the industrial environment
Easy installation with SICK accessories

Applications

Component identification for transverse axis robots
Component identification for transverse axis robots
Positioning of the sheet pallet
Automated parts feed and discharge
Precision positioning of the x and y axes on the stacker crane lifting and moving unit.

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WT12L-2B550A02
