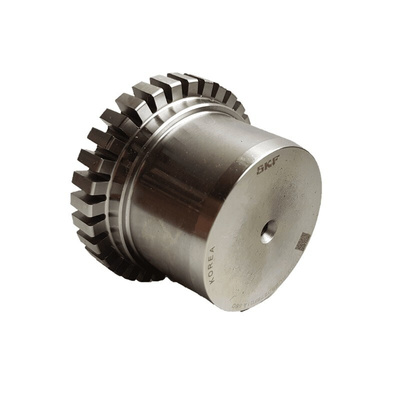

PHE 1090TGRSB, SKF Grid Coupling, 124mm Outside Diameter, 95mm Bore, 98mm Length Coupler

The SKF grid coupling has unique design of the grid and hub teeth enable these couplings to accommodate movement and stresses from all three planes, which can reduce vibration levels by as much as 30%. The tapered grid element is manufactured from a high strength alloy steel. The grid, which, is the primary wear component of the coupling is designed for quick and easy replacement unlike other couplings, the hubs and other components are not disturbed. This makes realignment virtually unnecessary and further reduces downtime and maintenance costs.

Coupling size 1090
Horizontal or a vertical position without modification

Datasheet - PHE 1090TGRSB
