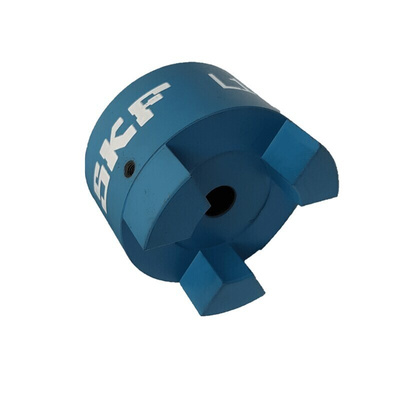

PHE L095HUB, SKF Jaw Coupling, 54mm Outside Diameter, 28mm Bore, 64mm Length Coupler

SKF Coupler, Cast Iron Construction, Coupling Size 95, 28mm Bore - PHE L095HUB

When you need a solution for cushioning moderate shock loads in your industrial motion control system, this coupler from SKF takes the strain. It's a jaw-type hub that holds your equipment's rotating shafts in place, ensuring a reliable connection while dampening vibration levels. A complete coupling consists of two hubs, each attached to a separate shaft, with an insert known as a spider connecting them. As this unit has a bore of 28mm, an outer diameter of 54mm and a length of 64mm, it's a good option for mid-sized shaft linking. A 9,000r/min maximum operating speed ensures it keeps pace with demanding applications.

Features & Benefits

• Robust cast iron housing is hardwearing and corrosion-resistant, so maintenance is minimal
• M8 set screws achieve a secure and reliable connection
• Light weight of just 310g puts little strain on your system

Applications

• Industrial packaging machines
• Automated conveyors
• Sorting lines

What happens if the shafts are misaligned?

Jaw couplings can tolerate small amounts of misalignment between the shafts. The insert between the couplings allows for some flexibility in shaft positioning.
