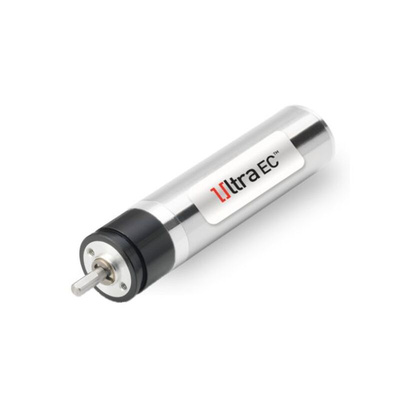

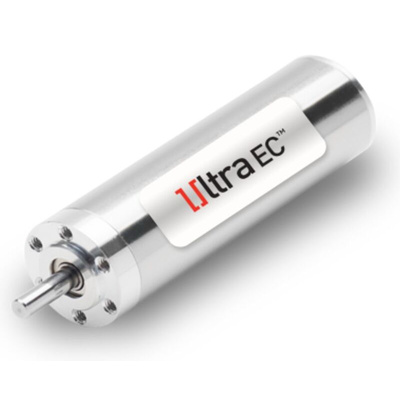

16ECP 52 8B 112 03 R16 0 88, Portescap Brushless Geared DC Geared Motor, 24.1 W, 24 V dc, 0.3 Nm, 85 rpm, 3mm Shaft Diameter

The Portescap UltraEC 16ECP series 16 mm diameter brushless motor that can be adapted and optimized to meet a wide range of different torque and speed working points, thus making the it an excellent choice for many BLDC motor applications, especially applications requiring high efficiency and long life. The high efficiency of it design helps customers reduce the size of their drive system and extend the operating life of battery powered applications.

Optimized magnetic design allows motor to achieve up to 30W continuous power
Optimized and flexible mechanical design
Proprietary coil design and optimized bearing assembly allows 16ECP motors to reach speeds up to 40,000 rpm
With or without hall sensors
Excellent choice for high speed applications

Datasheet - 16ECP 52 8B 112 03 R16 0 88

Datasheet 16ECP 52 8B 112 03 R16 0 88
