IZG10-0803-01, SMC 24 V dc Antistatic Gun, Ionising Air Gun

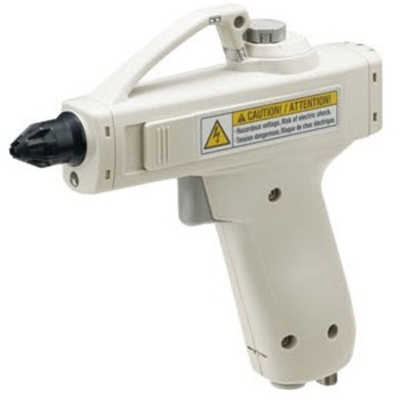

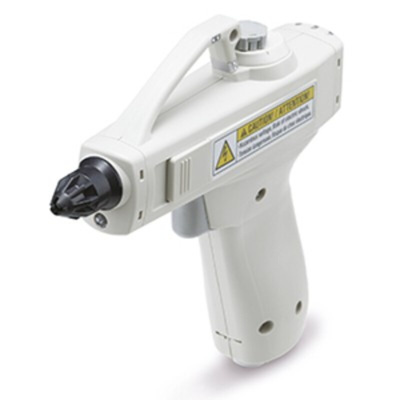

SMC IZG10-0803-01 Gun Type Ioniser

The SMC IZG10-0803-01 is a gun ioniser and part of the IZG10 series which is considered the most preferred choice in the industry.

The IZG10 is a combination of a triggered compressed air blow gun and a high frequency AC ioniser and is most suited for applications like removing dust from resin products and static neutralisation of resin parts, etc. The IZG10 has many great features including energy savings by selecting a pulse blowing mode, an OFF timer, or setting on the flow adjustment valve.

Features and Benefits

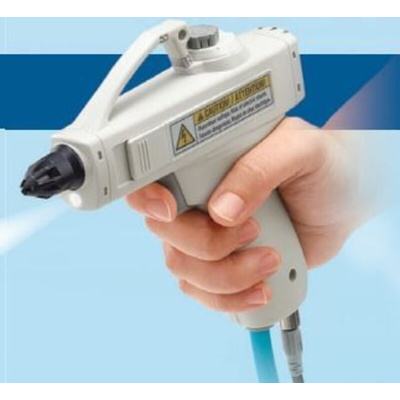

Ergonomic easy to hold grip for improved handling and reduce user fatigue
Lighting LED – illuminate the object to make it easier to find particles during static neutralisation

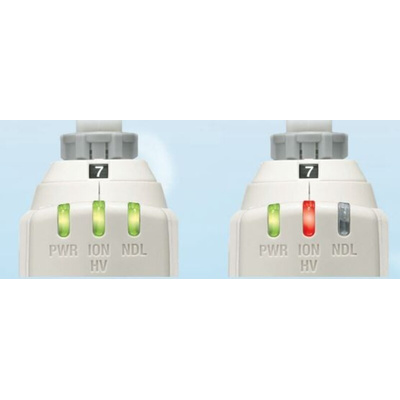

High visibility rear mounted LEDs
Reduced operating force
Blow setting and trigger setting with flow rate adjustment function
Rapid static neutralisation
Easy cleaning and replacement of emitters – has removeable nozzle
Power supply cable
Standard nozzle
Connecting tube size Ø 8 (Metric), Ø 5/16" (Inch)
Material: PBT case, Tungsten Emitter
Weight: 200g
Operating pressure: 0.05 to 0.6 MPa

Note

This is supplied with 24V dc power cable and doesn’t come with AC adapter.

Standards

CE, RoHS, OSHA (option)

Datasheet - IZG10-0803-01
