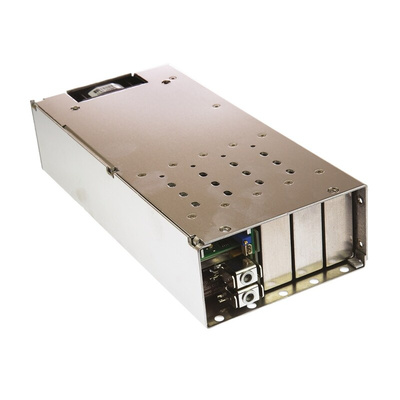

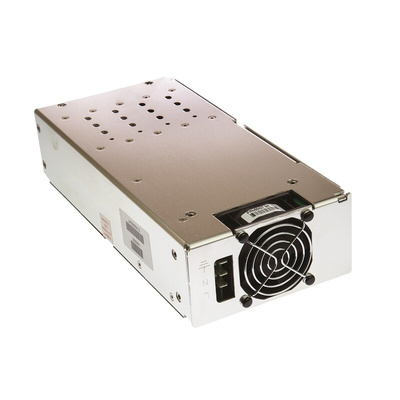

TDK-Lambda Switching Power Supply, CA400 24G, 24V dc, 25A, 400W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda Alpha series 400W single output AC to DC embedded switch mode power supply has an output current rating of 25A at 24VDC. It has a universal input supply voltage rating from 90VAC to 264VAC.
Note:
Total of output loads must not exceed the rating of the unit. De-rates 2.5%/°C from 50°C to 65°C.

Features and Benefits

Voltage adjustment on all outputs
High efficiency 75% typical
Overvoltage/ overcurrent protection
Thermal protection
No minimum load required
All outputs fully floating
Fully regulated outputs
Remote sense
Integral fan
Rapid installation
Up to 16 outputs
Fast-on output connection
Low profile
Simpler to install in system
Reduces installation time/ errors
Worldwide approvals and CB report

Applications

Instrumentation
Medical
Automation
Security
Network servers and routers
Broadcast
ATE
Industrial computing
Lifesciences/ laboratory

Certifications

BS EN60950
UL1950
CSA 22.2-234
UL certified
CSA certified
BS (KM13930)
EN61000-3-2 (PFC standards)
EN55022 (RFI)

Approvals

UL Recognised; CSA Certified

CSA LR91780-74C

UL E135494
