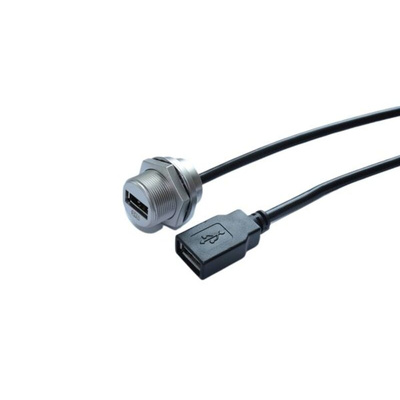

RS PRO Straight, Panel Mount, Socket Type A 2.0 IP68 Type A USB Connector

RS PRO, Straight, Panel Mount, Socket Type USB-A 2 IP68 Type A USB Connector

The RS PRO series of waterproof metal USB Type A connectors are a range of ruggedised IP68 connectors designed to be used outdoors or in harsher industrial environments. Designed to fit panel cut outs of 25.5mm the metal USB-A series also comes with rear potting on the panel mount connectors. This ensures your panel is still sealed to an IP68 rating even when the connector is unmated, and the sealing cap is not connected. The threaded mating allows for a secure connection while the Gold-plated contacts and USB Version 2.0 ensures 480Mbps data speeds.

Features and Benefits

• Nickel Plated Zinc Alloy Housing


• IP68


• Rear Potted


• Threaded Mating


• USB-A 2.0


• Speeds up to 480Mbps


• RoHS Compliant


• Cable length: 300mm

Applications

These RS PRO range of ruggedised IP68 connectors and are waterproof making them ideal for outside use and for harsher industrial environments. Applications can include:
Automotive
Wireless outdoor AP
Medical equipment
GPS
Industrial PC
Outdoor LED display
Military equipment
