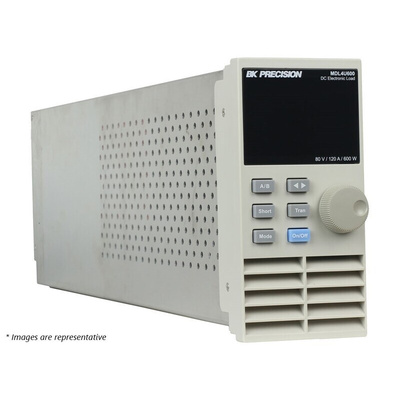

MDL4U400 Series, BK Precision Electronic DC Load, MDL4U400, 60 A, 80 V, 400 W, 10 → 7500 Ω

The MDL4U Series is a multi-channel modular programmable electronic load system. Seven different modules of programmable DC loads ranging in power from 200 W to 600 W provide users the flexibility to test a wide range of power sources from multi-output AC/DC power supplies to batteries, fuel cells, and photovoltaic arrays.
Modules offer wide voltage and current range, 0 to 500 V, 0 to 120 ASupport for up to 4 modules/8 channels or 8 modules/16 channels with mainframe extensionTransient mode up to 25 kHzSynchronous Load on/off function Adjustable slew rate in CC modeStandard LAN, GPIB, USB, and RS232 interfaces with USBTMC/SCPI protocol supportShort circuit test simulates a short at the inputBuilt-in 16-bit resolution voltage and current measurement (0.1 mV, 0.01 mA)Remote voltage sensing to compensate for the effect of voltage drop in wiresOperate identical modules in parallel mode for high current applications OVP/OCP/OPP/OTP and reverse voltage protection

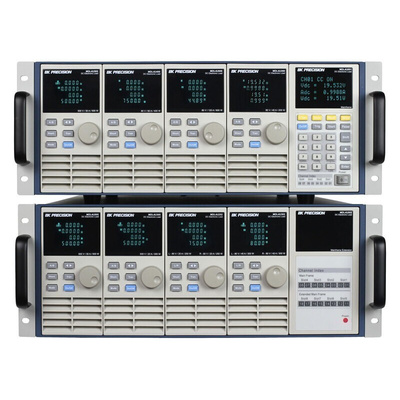

The mainframe has four slots that can be configured with any assortment of the modules up to 2400 W (up to 4800 W with mainframe extension). The high-performance electronic load modules of the MDL4U Series are capable of operating in constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and constant impedance (CZ) mode, which uses DSP technology to simulate non-linear loads and realistic loading behaviour.
MDL4U001 Mainframe for MDL4U DC Load ModulesMDL4U002 Mainframe Extension for MDL4U DC Load Modules MDL4U200 80V/40A/200W DC Load Module_4UMDL4U252* 80V/20A/250W 2 CH DC Load Module_4UMDL4U302* 80V/45A/300W 2 CH DC Load Module_4UMDL4U305 500V/2
The MDL4U252 and MDL4U302 are dual-channel modules. MDL4U252 users can allocate 250 W to either channel up to 300 W total (e.g. 50 W/250 W, 250 W/50 W, 150 W/150 W). MDL4U302 users can allocate 300 W to either channel up to 600 W total (e.g. 300 W/300 W).
MDL Series (non-4U) modules are not compatible with newer MDL4U Series mainframe model MDL4U001 or mainframe extension model MDL4U002.
