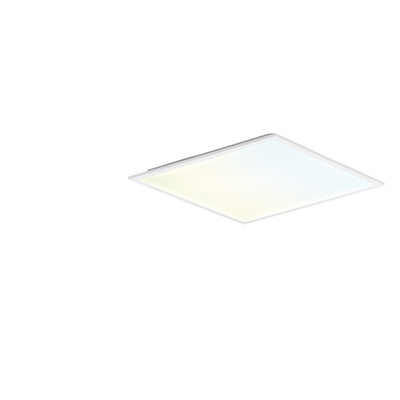

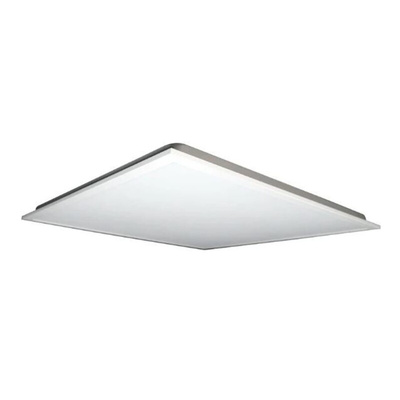

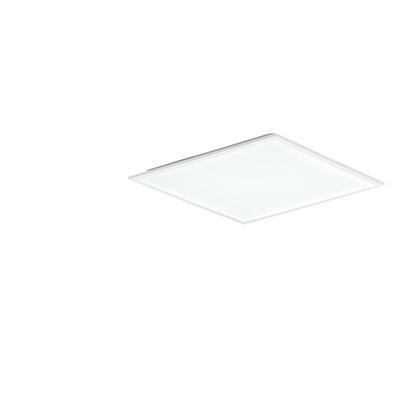

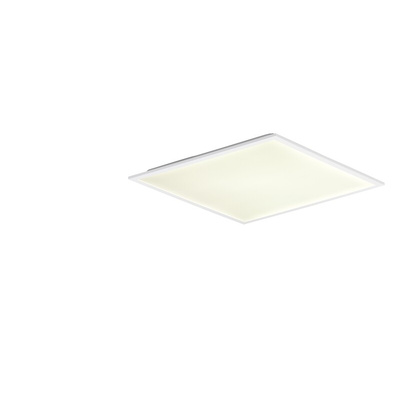

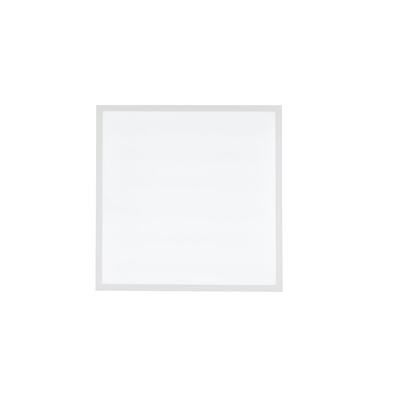

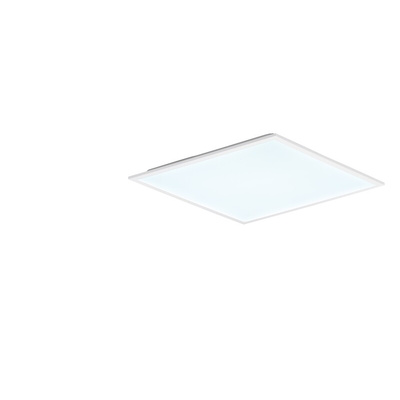

RS PRO 32 W Square LED Panel Light, Cool White, Daylight, Warm White, L 595 mm W 595 mm

RS PRO 32 W LED CCT3 Panel Light

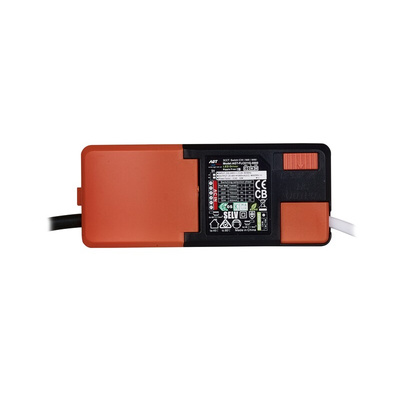

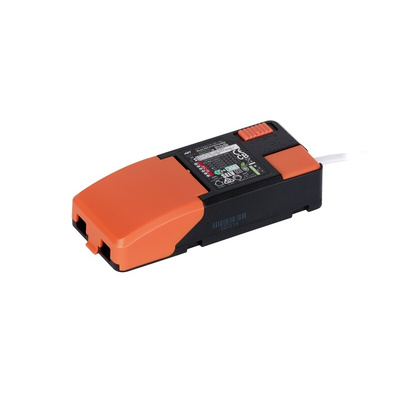

Introducing the RS PRO range of LED CCT3 panel lights. A selection of high-quality LED ceiling light panels perfect for use in commercial buildings and Industrial environments. This energy-efficient square LED CCT3 panel has a slim profile, white aluminium frame, and a unique selectable 4000K, 5000K, and 6000K colour temperature via dip switch on the driver, offering a natural white to cool white lighting solution to suit your needs.
The LED panel also features a TP(B) fire-rated diffuser, ensuring the light is evenly distributed from the panel whilst preventing discoloration. RS PRO LED panels are available in both 600 x 600 mm and 1200 x 600 mm sizes, offering the user flexibility with installations.

Features and Benefits

• Square Backlit LED Panel


• 32W, 3500LM, CCT3 (4000K, 5000K, 6000K)


• 110 lmW Luminaire Efficiency


• 110° Beam angle


• Diffused panel ensuring light is evenly distributed


• Voltage: 220V-240V


• Slim profile, white aluminium frame with high quality TP(b) diffuser, providing low glare (UGR<19)


• Loop in, loop out terminals provide for an easier and more economical installation


• Suitable for suspended ceilings


• Energy efficient LED lights for prolonged life


• Low glare in compliance with BS EN12464-4


• IP20 rating

You May Also Need

• RS PRO Rectangular LED Panel, 1200 x 600 mm, RS Stock no: 231-8115


• Remote DALI Dimmable Driver, RS Stock no: 231-8116

Applications

LED (light-emitting diodes) ceiling light panels are used in a wide range of commercial environments such as offices and corridors and are available with various colour temperatures from cool to warm daylight. LED ceiling light panels are quick and easy to install and offer a cost-effective and energy-efficient lighting solutions in a wide range of applications. Commonly found in;

• Offices


• Corridors


• Schools


• Retail

FAQs

What is TP(B) fire rating?

TP(B) fire rating refers to the rate of fire spreading if the material combusts. TP(B) ensures that the material takes at least 12 minutes to completely engulf a 600 x 600 panel.
