RS PRO 150 W High Bay Lighting

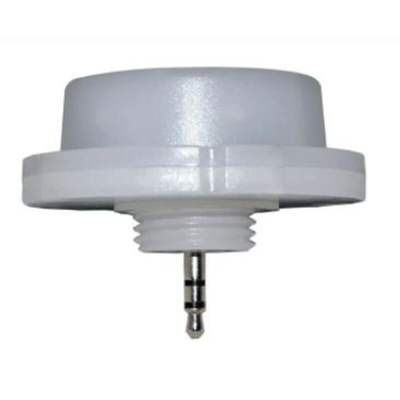

RS PRO Dimmable Microwave Sensor

Use this microwave sensor in conjunction with the RS PRO dimmable high bay lighting and remote control. This clever device is 100% sensitivity adjustable, 10 secs to 60 minutes time adjustable, Lux adjustable from 10 lux to 500 lux with disable option. The microwave sensor is a true plug & play component without the need for additional wiring.

Why would you need this microwave sensor?

A microwave sensor is an essential product designed to get the very best performance from your dimmable high bay lighting. It is compatible with 150W and 200W versions, connects directly to the high bay lights, and saves on energy consumption. Key features include a corridor function, with an automatic dim option (10/30/50% output) during periods of absence.

Key Features

• Compatible with RS PRO dimmable high bay lighting


• Sensitivity adjustable: 20% to 100%


• Time adjustable: 10 seconds to 60 minutes


• Lux adjustable: 10 lux to 500 lux with disable option


• Sensitivity, time and lux settings adjustable via remote control


• Factory pre-set: sensitivity 100%, time 5 mins, 100 lux


• Incorporates corridor function, with automatic dim option


• Plug & play install

Compatibility – RS PRO Dimmable High Bay Lighting

• 150 W, 4000K (cool white), RS stock no: 231-8135


• 150 W, 6500K (daylight), RS stock no: 231-8136


• 200 W, 4000K (cool white), RS stock no: 231-8137


• 200 W, 6500K (daylight), RS stock no: 231-8138


• Dimmable DualBay Remote Control, RS stock no: 231-8141

Applications

• High Bay Lighting


• Commercial and Industrial applications
