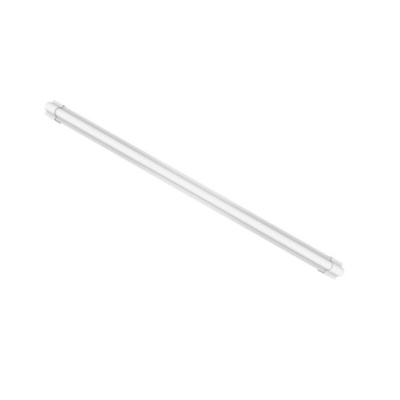

RS PRO 40 W LED CCT3 Selectable Batten Light, 220 → 240 V Emergency, 1800 mm Long, IP20

RS PRO CCT3 Professional LED Batten Lights

Introducing the RS PRO range of LED CCT3 professional batten lights. A selection of high performance LED luminaires perfect for use in commercial buildings. These energy-efficient, LED lights are the ideal retrofittable replacement solution for T8 fluorescent fittings. Upon inspection, made from steel with a polycarbonate diffuser, include an Internal selector switch and wire fittings.

Why would you choose theses Batten Lights?

The CCT3 series has multiple variations to choose the key features that meet your needs. They are available as a single batten, twin batten, or both with an emergency feature. The LED lighting has a selectable internal 3-way switch for the colour temperature, one of many advantages over traditional fluorescent and incandescent lighting. They are up to 50% more efficient, produce brilliant light, and are an improvement over natural light wasting very little energy. For Installation, there are two options, ceiling or suspension mounting via the wire fittings.

Features and Benefits

• High performance LEDs


• Retrofittable replacement solution for T8 fluorescent fittings


• Colour temperature CCT3 (3000K,4000K,6500K) selectable via internal 3-way switch


• 120° Beam Angle


• ENEC approved driver


• Voltage: 220-240V


• Variants: Single, Twin, Single with Emergency and Twin with Emergency


• Steel body, Polycarbonate body and diffuser


• Wire fittings supplied


• 20 mm cut-out


• IP65 rating, suitable for indoor use

Single Batten Variants – Available Separately

• 20 W, L.1200 mm, RS stock no: 231-8158


• 30 W, L.1500 mm, RS stock no: 231-8162


• 40 W, L.1800 mm, RS Stock no: 231-8166

Single Batten with Emergency Variants – Available Separately

• 20 W, L.1200 mm, RS stock no: 231-8157


• 30 W, L.1500 mm, RS stock no: 231-8161


• 40 W, L.1800 mm, RS Stock no: 231-8165

Twin Batten Variants – Available Separately

• 40 W, L.1200 mm, RS stock no: 231-8160


• 60 W, L.1500 mm, RS stock no: 231-8164


• 80 W, L.1800 mm, RS Stock no: 231-8168

Twin Batten with Emergency Variants – Available Separately

• 40 W, L.1200 mm, RS stock no: 231-8159


• 60 W, L.1500 mm, RS stock no: 231-8163


• 80 W, L.1800 mm, RS Stock no: 231-8167

Applications

• Commercial & Domestic areas


• Workshops


• Warehouses


• Factories


• Garages

FAQs

What does Colour Temperature refer to?

Colour temperature refers to a scale that measures the type of colour or hue that a lamp emits. The colour temperature scale is measured in Kelvins (K). The higher the K number the cooler the lamp. The lower the K number the warmer the lamp.

Why would you choose RS PRO?

RS PRO offers a wide range of Light Fitting products to suit your applications. Our range of LED Batten Lights has been selected for its high quality and great value. We understand quality is important to any engineer and have ensured that all RS PRO batten lights are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
