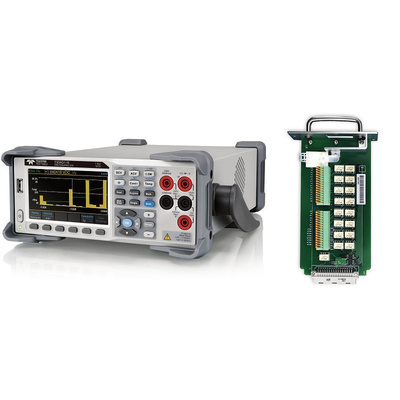

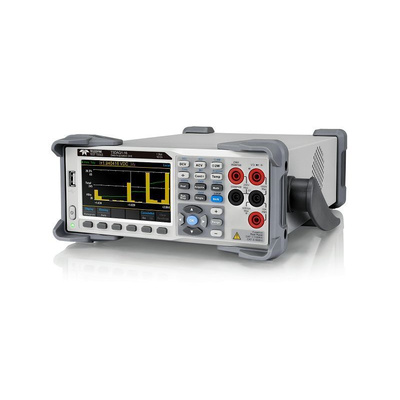

Teledyne LeCroy T3DAQ1-16 Data Acquisition Switch Unit, 16 Channel(s), LAN, USB, 6.5 digits

Teledyne LeCroy, 16 Channel, Single Slot, 12 Multi Purpose, 4 Current Channels, Bench Data Acquisition Switch Unit

The Teledyne LeCroy's Teledyne Test Tools T3DAQ1-16 is a 16 channel Data Acquisition System incorporating the latest 4.3 inch (10.92cm) dual-display technology which can be configured to show Data Histograms, Data fluctuation Trends, Bar Graph, Statistics or the traditional Number mode, all in an easy to use interface. The T3DAQ features 12 multi purpose + 4 current channels and supports various measurement functions. It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing. A great feature of the Teledyne Test Tools T3DAQ is its ability to make highly accurate True RMS AC Voltage and Current measurements, meaning no loss of accuracy even when measuring complex voltage and current waveforms.

16 Multi-purpose Data Acquisition Channels built on a 6 digit digital multimeter platform
Wide range of measurements – DC/AC voltage and Current, Resistance, Capacitance, Frequency, Period
True-RMS measurements – All AC Voltage and Current ranges give True-RMS readings
Built-in cold terminal thermocouple compensation
USB Device, USB Host and LAN support
Real 6-5 digit (2,200,000 count) readings resolution
4.3” TFT-LCD Display
Built-in front panel accessible help system
File management (support for U-disc and local storage)
12 Multi-purpose channels can be configured individually for various scan requirements

Applications

Research Laboratory
Development Laboratory
Repair and Maintenance
Calibration Laboratory
Automatic Production Test
General bench-top use

Datasheet - T3DAQ1-16
