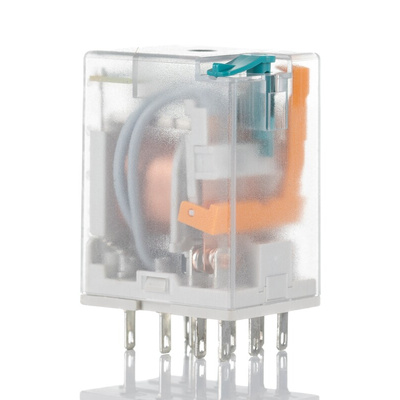

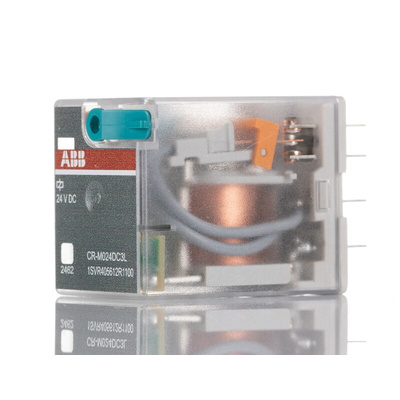

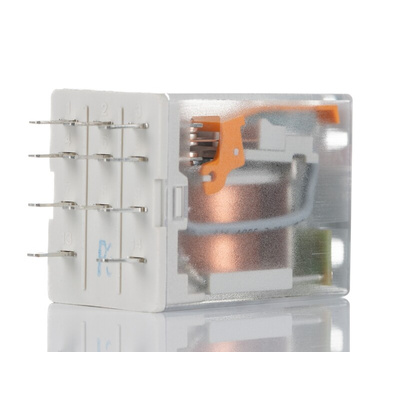

1SVR405612R1100 CR-M024DC3L, ABB CR-M Series Interface Relay, DIN Rail Mount, 24V dc Coil, 3CO (SPDT), 10A Load

ABB Interface Relay, 250V Output Voltage, LED Indicator - CR-M Series - 1SVR405612R1100 CR-M024DC3L

Switch on to seamless signal transmission to your PLCs with this interface relay from ABB. It converts the source voltage signal to what's safe for connected devices and removes interference for noiseless communication. Thanks to three c/o contacts, you can control multiple circuits simultaneously, eliminating the need for excess wiring. Delivering an output of 250V with a load current of 10A makes this component the right fit for most UK standard electrical applications.

Features & Benefits

• DIN rail mounting is simple and tool-free, saving time and hassle
• Integrated LED status indicator for easy monitoring and troubleshooting
• Compact dimensions of 35.6 (H) x 21.2 (W) x 27.5mm (D) for space-efficient installation in confined spaces
• Cadmium contacts to prevent arcing at high voltages

Applications

• Robotics and automation
• Medical equipment
• Process and packaging plants

What's the operating temperature range of this relay?

This unit operates optimally in a temperature range between -40°C to +70°C, making it suitable for challenging settings.

How do I connect this relay to the circuit?

The relay has flat pins to plug into a socket that links it to the circuit.

Datasheet - 1SVR405612R1100

Catalogue - Electronic Relays And Controls

Brochure - Push In Sockets
