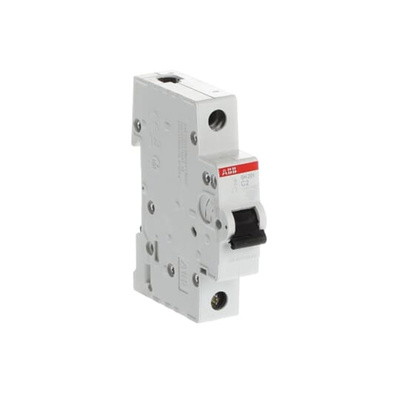

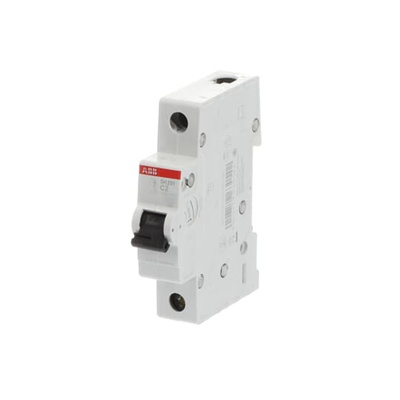

2CDS211001R0024 SH201-C 2, ABB Compact Home SH200 MCB, 1P, 2A Curve C, 253V AC, 6 kA Breaking Capacity

ABB MCB, 1 Pole, 1.8W Power Loss Per Pole - SH200 Series - 2CDS211001R0024 SH201-C 2

To guard your equipment against electrical damage, put this MCB from ABB on duty. It monitors the power feed and swiftly shuts it down if there's a short circuit or current overload. After a trip, you can reset the unit by simply flipping the toggle switch. Thanks to its type-C tripping characteristic, it handles between five and ten times its 2A full load current. Mechanical endurance of 20,000 cycles means you can rely on it for long-term operations. Mount this device in a jiffy by clipping it onto a DIN rail.

Features & Benefits

• Low power loss per pole of 1.8W for energy efficiency
• IP20 rating indicates it's touch-proof and protected from objects larger than 12mm
• Breaking capacity of 6kA to handle medium-level fault currents
• Can be mounted in any position for flexible assembly
• Caged screw terminals achieve a tight hold on wires

Applications

• Construction industry
• Food production and packaging
• Office buildings
• Broadcasting stations

How can I tell the status of this device?

This device has an indicator window that shows its contact state, letting you swiftly check and configure its operating status.

Is this MCB shock-proof?

Yes – it's been tested for resistance to mechanical shock and vibration.
