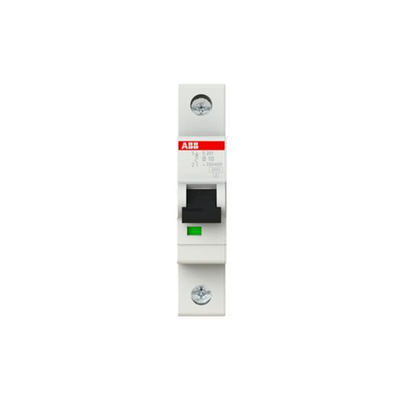

2CDS251001R0105 S201 B 10A - 10 KA, ABB System Pro M Compact S200 MCB, 1P, 10A Curve B, 230 V, 400 V AC, 10 kA Breaking Capacity

ABB S200 DIN Rail Mount, 1P, 10A - 2CDS251001R0105 S201 B 10A - 10 KA

The is part of the System pro M compact S200 series of miniature circuit breakers. These breakers are designed to be current limiting, ensuring safety in various applications. They incorporate two distinct tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. Available in different characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), and rated currents (up to 63A), these MCBs comply with international standards (IEC/EN 60898-1, IEC/EN 60947-2, UL1077). They find use in residential, commercial, and industrial settings. Additionally, the S200 series allows for bottom-fitting auxiliary contacts, saving valuable space

Features & Benefits

• Ensures safe operation by limiting current during faults. This reduces the risk of damage to downstream equipment and prevents electrical hazards
• Delayed thermal tripping mechanism protects against overloads, preventing excessive current flow
• Electromechanic tripping mechanism rapidly disconnects the circuit during short circuits, enhancing safety
• High breaking capacity (Up to 6 kA) allows handling of faulty currents without compromising safety

Applications

• Used in homes for circuit protection
• Suitable for offices, shops, and small businesses
• Deployed in factories, warehouses, and manufacturing facilities

Can I use the S201-B10 in my home’s electrical panel?

Yes, it is suitable for residential applications.

What is the breaking capacity of this circuit breaker?

The S201-B10 has a breaking capacity of up to 6 kA at 230/400 V AC.

Can I add auxiliary contacts to this MCB?

Yes, you can mount bottom-fitting auxiliary contacts to save space.

Is the S201-B10 compatible with both AC and DC systems?

Yes, it is suitable for both AC (253V) and DC (72V) applications.
