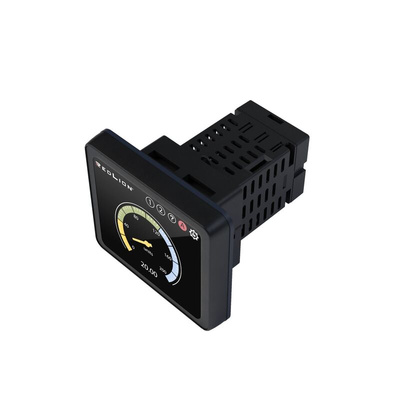

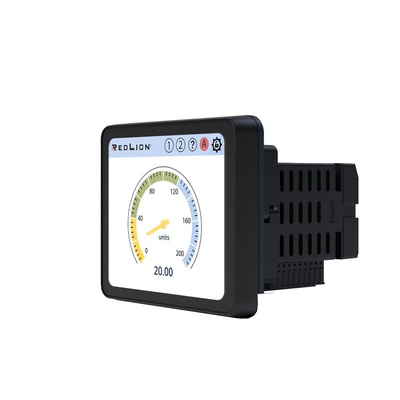

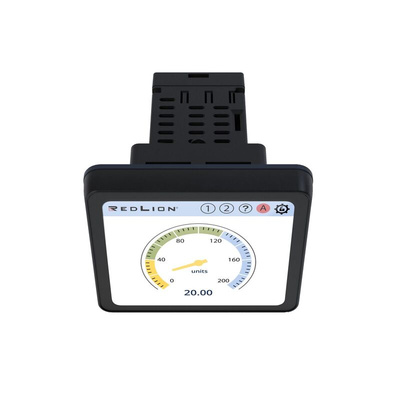

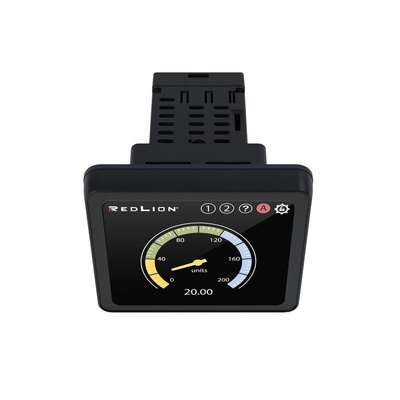

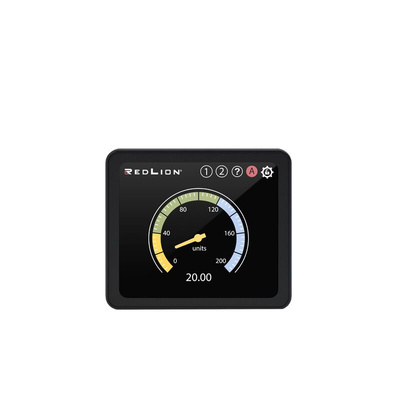

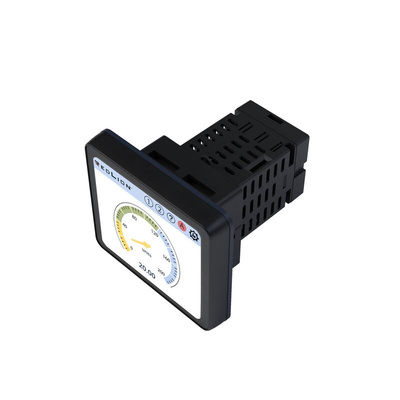

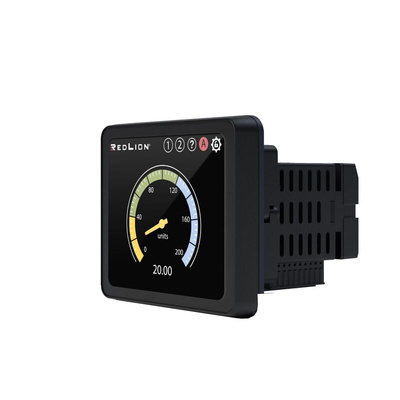

PM500A0301600F00, Red Lion PM-50 Color TFT-LCD 3.5" Touchscreen Digital Panel Multi-Function Meter for Analog Signal, 45mm x 45mm

Monitor your equipment and see your data like never before with Red Lion’s Graphical Panel Meter, PM-50. This next-generation graphical panel meter connects you to the information that matters most, where and when you need it most. Unplug your old meter, insert PM-50, connect it to Wi-Fi, and start harvesting your data. Creating a smart plant floor has never been easier.

The Red Lion smart-device connectivity frees critical data from the confines of the plant floor, so you can remotely gather the workflow and process insights you need to increase production throughout. Instant notifications reduce downtime by keeping you on top of equipment needs. On the panel, a touchscreen interface loaded with vibrant, user-friendly graphics allows you to swipe and view more data with less effort. Its modular design grows with you. A built-in set-up wizard and available mobile programming app means anyone can program the meter. With PM-50, the simplicity of a panel meter meets the power of your connected future.

DISPLAY

3.5” Full colour graphical touchscreen
Single screen display, swipe for an additional 4 screens

DIN METER SIZE

Easily replaces 1/16 DIN products

ANALOG INPUT MODELS

Current, process, resistance, strain gage, temperature, voltage

GRAPHICAL DISPLAY

Full colour touchscreen
Intuitive screens
Multiple displays

SIMPLE PROGRAMMING

Start-up Wizard
Programming App
Web server

ALARM NOTIFICATION

Display colour change
Focuses attention

DATA ACCESS

Wi-Fi
Modbus/RS485
Ethernet & RS232

MODULAR CONSTRUCTION

Plug-in play modules
Upgradeable firmware
Outputs, power & comms

EASY FIELD REPLACEMENT

Use existing wiring
4.3"" - 1/8 DIN products
3.5"" - 1/16 DIN products

SMART DEVICE CAPABILITIES

Functionality
Programming
Connectivity
