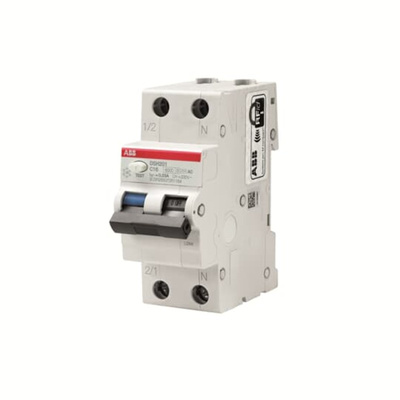

2CSR255170R1164 DSH201 C16 A30, ABB RCBO, 16A Current Rating, 2P Poles, Type AC

ABB RCBO, 6kA Rated Short-Circuit Capacity, 16A Current Rating - DSH201 Series - 2CSR255170R1164 DSH201 C16 A30

Looking for all-in-one protection for your power network? Fit this RCBO from ABB. It's a reliable multi-tasker that prevents overloads, short-circuits and earth leakages. The device has type-C tripping characteristics, so it trips at 5 to 10 times its 16A current rating, taking just a few milliseconds to cut power to downstream equipment. Its quick response time minimises the impact of faults by ensuring the energy released is kept at a safe level. This device weighs only 182g, so it puts minimal strain on your DIN rail.

Features & Benefits

• Space-saving dimensions of 69 (L) x 35 (W) x 85mm (H) fit easily in a confined space
• Wide operating temperature range between -25°C and +55°C for use in harsh conditions

Applications

• Distribution boards
• Medical equipment
• Manufacturing systems
• Engineering workshops

How do I install this RCBO?

Installing this device is quick and easy. First, turn your mains power off and then attach the wires to the corresponding terminals. With the cables secured, snap the unit onto the DIN rail and turn the mains on again.
