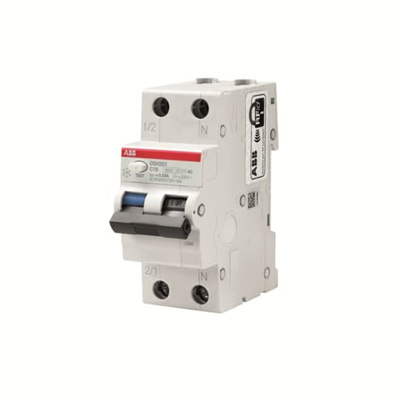

2CSR255170R1324 DSH201 C32 A30, ABB RCBO, 32A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type A

ABB RCBO, 32A Current Rating, 6kA Rated Short-Circuit Capacity - DSH201 Series - 2CSR255170R1324 DSH201 C32 A30

Stop sparks from flying with this 2-pole RCBO from ABB. The device combines all the benefits of RCD safety with overload and short-circuit protection to safeguard equipment and people. It immediately disconnects a power supply when a fault occurs to reduce damage and other shocking surprises. A mechanical endurance of 20,000 cycles assures you that this unit has the oomph to keep on going while calling for minimal maintenance. The small device, with space-saving dimensions of 69 (L) x 35 (W) x 85mm (H), fits easily into a busy enclosure.

Features & Benefits

• Broad operating temperature range between -25°C and +55°C for use in challenging conditions
• Power loss of 6.4W ensures it handles high electrical loads safely and reliably

Applications

• Medical imaging equipment
• Construction industry
• Electrical engineering
• Automated systems

What tripping characteristic does this RCBO have?

This unit has type-C tripping characteristics, meaning it trips between 5 to 10 times its 32A current rating. This feature ensures the energy release is kept at a safe level, preventing harm to personnel and equipment.

How do I mount this RCBO?

Simply snap it onto a DIN rail for convenient, tool-free installation.

Datasheet - 2CSR255170R1324
