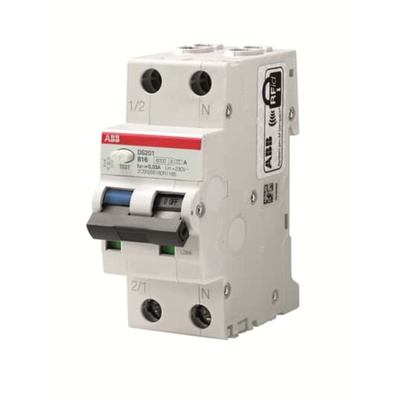

2CSR255180R1324 DS201 C32 A30, ABB RCBO, 32A Current Rating, 2P Poles, 30mA Trip Sensitivity, Type A

ABB RCBO, 500V Rated Insulation Voltage, 6kA Rated Short-Circuit Capacity - DS201 Series - 2CSR255180R1324 DS201 C32 A30

Keep electrical hazards at bay with this RCBO from ABB. The unit offers comprehensive safeguarding by combining the safety properties of an RCD with overcurrent and short-circuit protection. In the event of an electrical fault, the device instantly breaks the connected circuit to prevent damage to equipment and harm to people. It also features IP20-rated, touch-proof terminals to prevent electric shocks. A colour-coded toggle switch clearly shows its on or off positions for speedy troubleshooting and reduced downtime.

Features & Benefits

• IP40-rated housing protects internal components against tools and wires greater than 1mm
• Lightweight component tips the scales at only 200g, so puts minimal strain on the mounting surface
• Screw terminals secure contacts to help prevent accidental disconnections
• Wide operating temperature range between -25°C and +55°C for use in demanding conditions

Applications

• Electrical distribution boards
• Power plants
• Medical equipment
• Assembly lines

How big is this RCBO?

It's a small unit, measuring just 69 (L) x 35 (W) x 85mm (H). This means it fits easily into a cramped enclosure.

How do I mount this RCBO?

Installation is a cinch – just clip the unit onto a DIN rail and it's ready to go.
