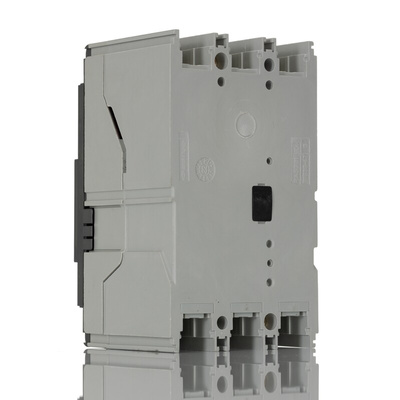

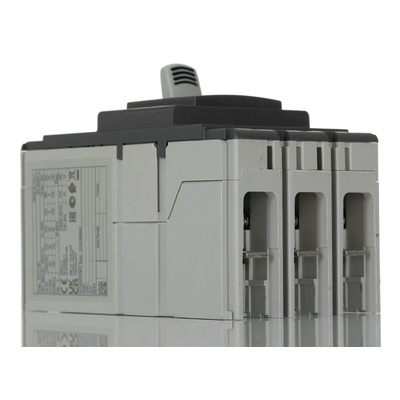

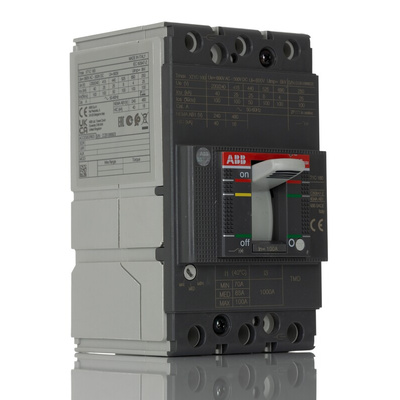

1SDA067397R1 XT1C 160 TMD 100A FF, ABB, SACE Tmax XT MCCB Molded Case Circuit Breaker 3P 100A, Breaking Capacity 25 kA, Fixed Mount

ABB MCCB, Fixed Mounting, 690V AC/500V DC Rated Operational Voltage - XT1C Series - 1SDA067397R1 XT1C 160 TMD 100A FF

To head off electrical faults before they damage equipment, use this moulded case circuit breaker from ABB. The device disconnects the power supply when short circuits and overcurrent creep into your feeds. A rugged plastic casing insulates the live components to help prevent electric shocks. The front-terminal design includes a toggle switch that clearly indicates the contact position, boosting electrical safety and making troubleshooting easy. Thanks to its 100A current rating, this breaker is a match for your demanding industrial applications.

Features & Benefits

• Works with AC and DC power sources for versatility
• Compact measurements of 130 (H) x 76.2 (W) x 70mm (D) mean it slots into limited spaces
• Mechanical durability of 25,000 cycles assures you of reliable performance in the long term

Applications

• MRI machines
• Automated control installations
• Industrial motors
• Aerospace technology

How many poles does this MCCB have?

It's a 3-pole unit that accommodates multiple circuits, so you can streamline your setup and save installation space for other devices.

How much does this breaker weigh?

This lightweight unit tips the scales at 1.1kg, so it puts little strain on industrial installations.
