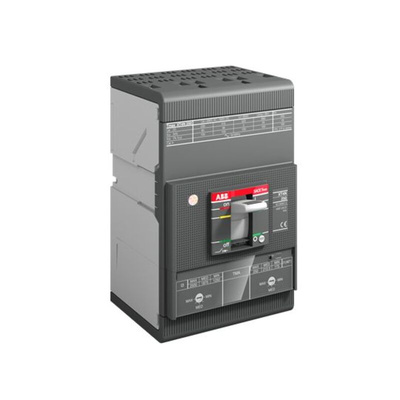

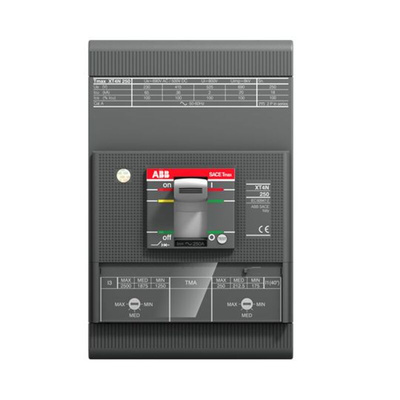

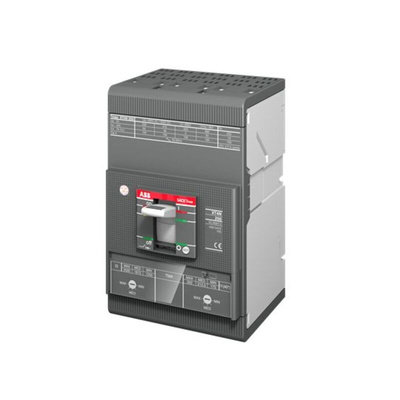

1SDA068092R1 XT4N 250 TMA 250A FF, ABB, SACE Tmax XT MCCB Molded Case Circuit Breaker 3P 250A, Breaking Capacity 36 kA, Fixed Mount

ABB MCCB, Front Terminals, 690V Rated Voltage - XT4N Series - 1SDA068092R1 XT4N 250 TMA 250A FF

Halt faulty current flow to your electrical network in a flash using this MCCB from ABB. It monitors the supply and quickly shuts it down should it detect a short circuit or overload. You can adjust the setting range between 175 and 250A for a custom tripping function to suit your machinery. The front terminal connection simplifies the job of wiring by giving you easy access. Thanks to a mechanical durability rating of 240 cycles per hour, this breaker can handle the rigours of fast-paced systems.

Features & Benefits

• Compatible with AC and DC voltage for versatile operation
• Test button enables rapid troubleshooting
• Rated impulse withstand voltage of 8kV gives it the capacity to withstand high-current surges

Applications

• Factory floors
• Transportation sector
• Control panels
• Data centres

What's the breaking capacity of this MCCB?

This device has a breaking capacity of up to 65kA, which assures you it can safely interrupt high levels of fault currents with minimal risk of downtime.

What's the switching time of this device?

As it has an opening time of 15ms, this MCCB rapidly switches the contact state for quick operation.
